Product Details:
|
| Name: | Ftth Termination Box | Type: | 16ports |
|---|---|---|---|
| Color: | Grey Or Black | Warranty: | 3 Years |
| Application: | FTTH FTTB FTTX Network,CATV | Material: | PC+ABS |
| Weight: | 1.5kg | Working Temperature: | -40℃ ~ +80℃ |
| Ip Grade: | Outdoor IP65 | Max Capacity: | SC 16Port/Modular PLC 1X16(SC) |

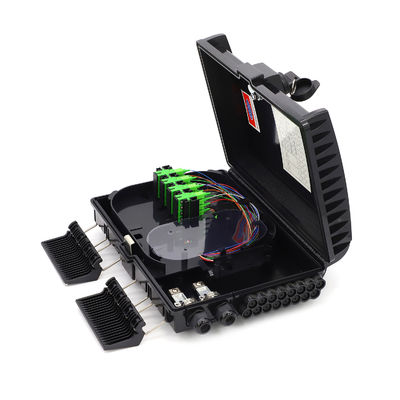

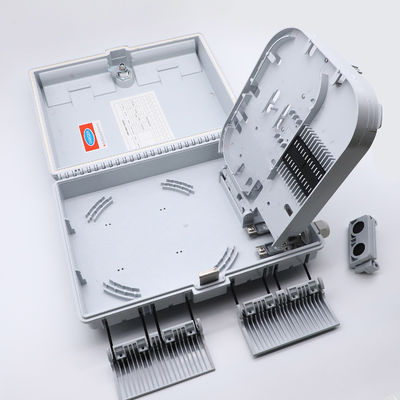

Description
Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in
FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile
it provides solid protection and management for the FTTx network building.
Features
1.ABS material used ensures the body strong and light.
2.Water-proof design for outdoor uses.
3.Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5.Ready for splitters: designed space for adding splitters.
6.Space saving! Double-layer design for easier installation and maintenances:
7.Lower layer for splitters and over length fiber storage.
8.Upper layer for splicing, cross-connecting and fiber distribution.
9.Cable fixing units provided for fixing the outdoor optical cable.
10.Protection Level: IP65.
11.Accommodates both cable glands as well as tie-wraps
12.Lock provided for extra security
Specifications
| Dimensions and Capability | |
| dimensions(W*H*D) | 270mm*220mm*100mm |
| Adapter Capacity | 16xSC;16xLCDX;1x16 PLC Splitter |
| Number of Cable Entrance/Exit | 2/16 |
| Optional Accessories | Adapters, pigtails |
| Insert Loss | ≤0.2dB |
| UPC Return Loss | ≥50dB |
| APC Return Loss | ≥60dB |
| Weight | 1.8KG |
| Shipping Information | |
| Pakage Contens | Distribution box, 1 unit; Keys for lock, 2keys |
| Wall mount installation accessories,1 set | |
| Package dimensions(W*H*D) | 270mm*200mm*100mm |
| Weight | 1.8KG |
1. Are you a manufacturer or trade company?
We are the manufacturer with 13 years' history.
2. What is your fiber brand ?
Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC
3. What is your main product ?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal Box, except that, we have very good prices for part of fiber tools!
4. How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost!
5. What is the quality for your product?
All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!
6. How do you arrange the shipping?
Solution A: SUNET take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Qingdao logistic company to do the shipping, SUNET follow the company's instructions and finish the shipping.
7. How can you guarantee the delivery time?
To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. We can regulate the penalty clause in the contract for the late delay.
8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
9. What is your quality control for your fiber optic product ?
1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ISO certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
