Home ProductsFiber Optic Splice Closure

2in 2Out 24 Cores Splice 370mm Joint Closure Optic

I'm Online Chat Now

2in 2Out 24 Cores Splice 370mm Joint Closure Optic

2in 2Out 24 Cores Splice 370mm Joint Closure Optic
2in 2Out 24 Cores Splice 370mm Joint Closure Optic
2in 2Out 24 Cores Splice 370mm Joint Closure Optic 2in 2Out 24 Cores Splice 370mm Joint Closure Optic 2in 2Out 24 Cores Splice 370mm Joint Closure Optic 2in 2Out 24 Cores Splice 370mm Joint Closure Optic 2in 2Out 24 Cores Splice 370mm Joint Closure Optic 2in 2Out 24 Cores Splice 370mm Joint Closure Optic

Large Image :  2in 2Out 24 Cores Splice 370mm Joint Closure Optic

Product Details:
Place of Origin: Qingdao China
Brand Name: SUNET or OEM
Certification: ISO9001 ISO14001
Model Number: Dome type
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $ 4.5--35 per piece
Packaging Details: Per piece in one poly bag,10 pieces in one bigger poly bag, 500 pieces in one carton
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50000pieces per day

2in 2Out 24 Cores Splice 370mm Joint Closure Optic

Description
Name: Fiber Optic Splice Closure Material: ABS And PP,PC ABS
Color: Black Type: Dome Horizontal
Ip Rating: IP68 Cable Diameter: Max 36
Ports: 2IN 2 OUT Core Capacity Per Tray: 12 Cores And 24 Cores
Package: By Carton Box Fiber Cores: 12 To 288 Cores
High Light:

370mm Joint Closure Optic

,

24Cores Joint Closure Optic

,

370mm fiber splice closure

2in 2Out 24 Cores Splice 370mm Joint Closure Optic 0

2in 2Out 24 Cores Splice 370mm Joint Closure Optic 12in 2Out 24 Cores Splice 370mm Joint Closure Optic 2

2in 2Out 24 Cores Splice 370mm Joint Closure Optic 32in 2Out 24 Cores Splice 370mm Joint Closure Optic 42in 2Out 24 Cores Splice 370mm Joint Closure Optic 5

2in 2Out 24 Cores Splice 370mm Joint Closure Optic 6

Product Description

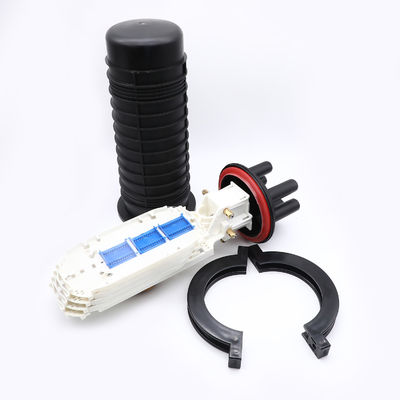

Vertical type of dome fiber optic splice closures is the equipment used to offer room for fusion splicing

optical fibers.It also provides protection for fused fiber joint point and fiber cables. There are mainly two

types of closures: vertical type and horizontal type. A large variety of fiber splice closures are designed

for different applications, such as aerial,duct fiber cables and direct burial. Generally speaking, they are

usually used in outdoor environment, even underwater.



The optical fiber joint closure appy to cable splicing. Direct burial, manhole, hand hole, wall hanging and

aerial placing method is adopted. It provide reliable, solid and flexible protection and helpful to environment

protection.





Features:

Heat shrinkable sealing structure.
High quality industrial plastic body material.
One oval hole and three round holes for cable entrance.
Suitable for cable diameter 5mm-25mm.
Support aerial under-ground pipeline man holes hand holes.
Protection level reaches IP68.
360 degrees access fiber bending> 40mm.



Application:

Aerial cable installation.
Pole mounted installation.
Wall mounted installation.
Man hole and hand hole installation.
FTTH access layer.





Product name Fiber optical splice closure joint closure
Material Plastic ABS
Function ADSS,OPGW and optical cable
Size H370mm*Φ115mm



Main components:

No. Name of components Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices in whole Height x Diameter 208mm x 132mm
2 Fiber optic splice tray Max. 4 trays (bunchy) Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:

Bunchy:4,6,8,12,(cores)

3 Fiber holding tray 1 piece Holding fibers with protective coat
4 Base 1 set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 piece Sealing between FOSC cover and base
7 Pressure testing valve 1 set After inject air, it is used for pressure testing and sealing testing Configuration as per
requirement
8 Earthing deriving device 1 set Deriving metal parts of fiber
cables in FOSC for earthing
connection
Configuration as per
requirement

2in 2Out 24 Cores Splice 370mm Joint Closure Optic 7

2in 2Out 24 Cores Splice 370mm Joint Closure Optic 8

2in 2Out 24 Cores Splice 370mm Joint Closure Optic 9

2in 2Out 24 Cores Splice 370mm Joint Closure Optic 10



FAQ



1. Are you a manufacturer or trade company?


We are the manufacturer with 13 years' history.

2. What is your fiber brand ?

Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product ?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal Box, except that, we have very good prices for part of fiber tools!

4. How can we place order?

After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost!

5. What is the quality for your product?

All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?

Solution A: SUNET take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Qingdao logistic company to do the shipping, SUNET follow the company's instructions and finish the shipping.

7. How can you guarantee the delivery time?

 To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product ?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ISO certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
