Product Details:
|
| Fiber Type: | G652D/G657A1/G657A2/Customized | Connector Type: | SC/APC |
|---|---|---|---|
| Insertion Loss: | ≤0.3dB | Jacket Material: | PVC/LSZH |
| Return Loss: | ＞55dB | Application: | FTTH FTTB FTTX Network |
| Length: | 1m 2m 3m Or Customized | Color: | White |
| High Light: | FTTX Single Mode Fiber Optic Pigtail,0.3dB Single Mode Fiber Optic Pigtail,Low PDL mpo pigtail |
||

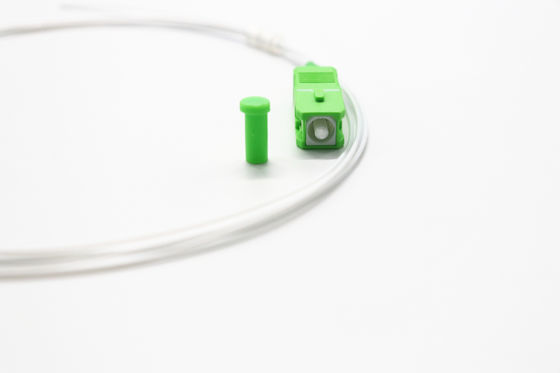

Sc/Apc PVC/LSZH Single Mode 0.9mm Sc Pigtail Optical Fiber
Description:
Fiber Optic Pigtail is important of optical network.They have same or different connectors which are installed on the end of fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features:
1. Price-Competitive
2. Low Insertion Loss & PDL
3. Factory-terminated and Tested
4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber
5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
6. Polishing Options:PC/UPC/APC
7. Feature Connector with Ceramic Ferrules
Application:
1. Access Network
2. Telecom/CATV
3. Systems FTTX
Parameters:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Loss (dB) | ≤0.25dB | ≤0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
| Return Loss (dB) | ≥50dB(PC/UPC) | ≥40dB(PC/UPC) |
| TIA/EIA-455-107 | ≥60dB(APC) | |
| Exchange-ability | ≤0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch cord | |
| Operating Temperature (ºC) | -10 ~ +70 | |
| Storage Temperature (ºC) | -40 ~ +85 | |
| Package | 1 pieces/bag | |
| All values specified are with connectors | ||
