Product Details:
|
| Product Name: | PLC Splitter | Type: | 1x4 |
|---|---|---|---|
| Connector Type: | SC/APC | Fiber Type: | G657A |
| Application: | FTTH FTTB FTTX Network | Material: | PVC / LSZH Optional |
| Wavelength: | 1260 To 1650nm | Cable Diameter: | 0.9mm |
| Cable Length: | 1m Or Customized | Color: | 12 Colors Are Available |
| High Light: | 0.9mm Fiber Optic PLC Splitter,GR-1221-CORE Fiber Optic PLC Splitter,LSZH fiber optic cable splitter |
||

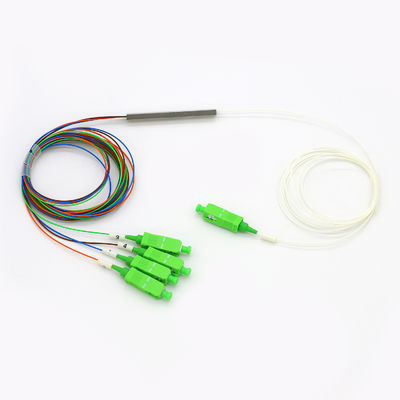

1x4 Steel Tube G657A 1m SC/APC PLC Passive Fiber Optic Splitter
Fiber Optic PLC Splitter Description
1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3). We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4). All products meet GR-1209-CORE and GR-1221-CORE requirements.
Fiber Optic PLC Splitter Features
1. Low Insertion loss and Low PDL
2. Uniform power splitting
3. High reliability
4. Excellent environmental stability
5. Compact size and various package
Fiber Optic PLC Splitter Applications
1. FTTx Systems
2. Digital, hybrid and AM-Video systems
3. LAN,WAN and Metro Networks
4. CATV systems
5. Other applications in fiber
Fiber Optic PLC Splitter Specification
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260~1650nm |
|||||
|
Fiber Type |
G657A SMF-28e or customer specified |
|||||
|
Insertion Loss (dB)(S/P Grade) |
4.0/3.8 |
7.3/7.0 |
10.5/10.2 |
13.7/13.5 |
16.9/16.5 |
21.0/20.5 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return Loss (dB) (S/P Grade) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~85 |
|||||
|
Storage Temperature (°C) |
-40~85 |
|||||
|
Packaging Dimension (mm) (L×W×H) |
40×4×4 |
40×4×4 |
40×4×4 |
40×4×4 |
50×7×4 |
60×12×4 |
Notes: 1. Specified without connectors. 2. Add an additional 0.2dB loss per connector
