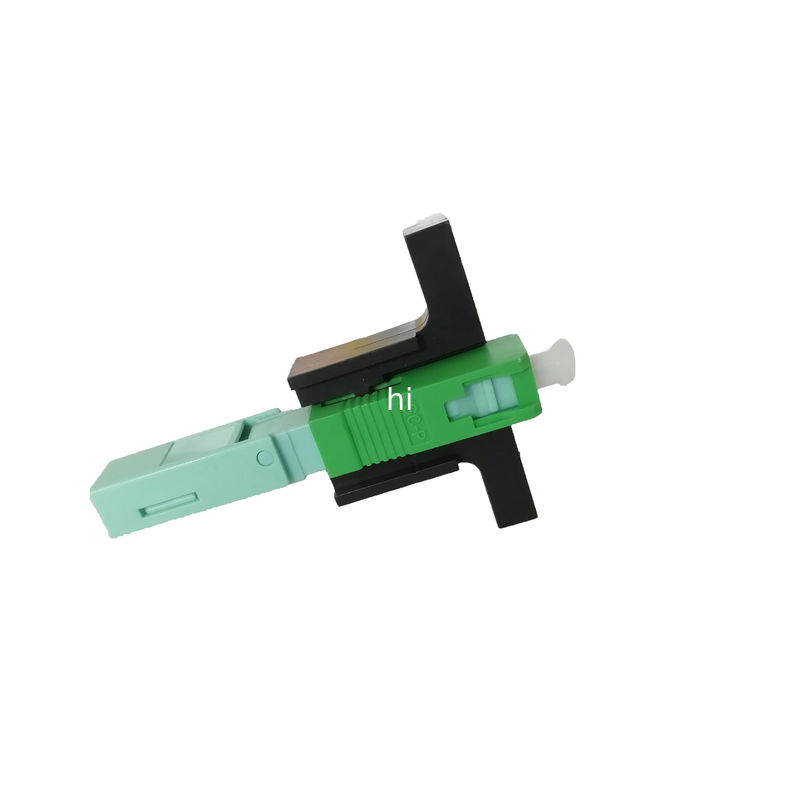

ESC250D Fiber Optic Fast Connectors

I'm Online Chat Now

ESC250D Fiber Optic Fast Connectors

ESC250D Fiber Optic Fast Connectors
ESC250D Fiber Optic Fast Connectors ESC250D Fiber Optic Fast Connectors

Large Image :  ESC250D Fiber Optic Fast Connectors

Product Details:
Place of Origin: Qingdao,China
Brand Name: SUNET or OEM
Certification: ISO9001,ISO14001
Model Number: SC/APC
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD0.51-0.59 per piece
Packaging Details: one piece in one bag
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000piece per week

ESC250D Fiber Optic Fast Connectors

Description
Connector Type: SC/APC Insertion Loss: ≤0.3dB
Fiber Type: SM/MM Fiber Cable Type: 3x2mm Flat Cable/3.1*2.0mm Butterfly Optical Cable
Return Loss: >=55dB Color: Blue,Green,Other
Material: PVC Durability: ≥ 1000 Times
Operating Temperature: -40 To +85 Degree
High Light:

ESC250D Fiber Optic Fast Connectors

,

SM Fiber Optic Fast Connectors

,

3x2mm apc fiber connector

FTTH Field Mountable ESC205D SC/APC Fiber Optic Fast Connectors



Description

Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection

Feature

1. Quickly assembly connetor
2. High return loss,low insert
3. Cost effective portable
4. Install quickly
5. Reliable and superior optical performance

Application

1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments



Specification



Product name SC APC Fiber Optic Field Assembly Fast Connector
Type Pre-Embedded
Suitable optical fiber 2.0*3.0 cable
Fiber mode Single & Multi mode
Installation time Within 60s ( No fiber cut )
Insertion loss ≤ 0.3dB (Max 0.5)
Return loss ≥ 50dB
Tensile strength > 50N
Working Temperature -40~+75ºC
Storage Temperature -40~+85ºC
