Product Details:
|
| Product Name: | 1X2 Fiber Optic FBT Coupler | Splitter Type: | Steel Tube Type |
|---|---|---|---|
| Fiber Type: | G652D/Customized | Wavelength: | 1310/1490/1550nm |
| Length: | 1M /Customized | Connector: | Without Connector |
| Application: | FTTH FTTB FTTX Network | Material: | PVC/LSZH |
| High Light: | G652D fbt fiber coupler,0.07dB fiber optic cable coupler,ISO14001 fiber optic cable coupler |
||

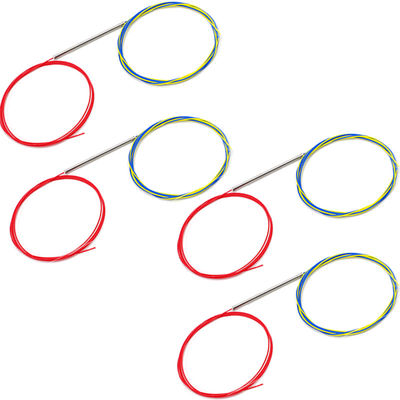

Triple Window Steel Tube Type 0.9mm 1M Fiber Optic FBT Coupler
FBT Coupler Description
1. Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3. Sunet provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE
Sunet offers both tree and star type inline couplers/splitters. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).
FBT Coupler Features
1. Low Excess loss
2. Low PDL
3. Environmentally stable
4. Good Thermal Stability
FBT Coupler Application
1. Long-haul Telecommunications
2. CATV Systems & Fiber Optic Sensors
3. Local Area Network
FBT Coupler Parameters
|
|
Three-Window Coupler (TWC) |
||
|
Grade |
P |
A |
|
|
Port configuration |
1x2 or 2x2 |
||
|
Operating wavelength (nm) |
1310 ,1490 and 1550 |
||
|
Operating bandwidth (nm) |
1310±40,1490±10 and 1550±40 |
||
|
Typical excess loss (dB) |
0.07 |
0.10 |
|
|
Insertion Loss (dB) |
50/50 |
≤3.6 |
≤3.8 |
|
40/60 |
≤4.7/2.7 |
≤4.9/2.9 |
|
|
30/70 |
≤6.0/1.9 |
≤6.3/2.1 |
|
|
20/80 |
≤7.9/1.3 |
≤8.4/1.4 |
|
|
10/90 |
9.20~11.00/≤0.75 |
8.80~11.40/≤0.8 |
|
|
5/95 |
12.05~14.20/≤0.4 |
11.55~14.65/≤0.5 |
|
|
3/97 |
14.10~16.50/≤0.35 |
13.60~17.05/≤0.45 |
|
|
2/98 |
15.60~18.55/≤0.3 |
15.00~19.20/≤0.4 |
|
|
1/99 |
18.45~21.70/≤0.25 |
17.80~22.40/≤0.35 |
|
|
PDL (dB) |
≤0.15 |
≤0.20 |
|
|
Directivity (dB) |
≥55 |
||
|
Operating temperature (℃) |
-40 ~ +85 |
||
|
Package Dimension |
250μm bare fiber: Φ3.0×45mm |
||
