Product Details:
|
| Connector: | Sc / Apc | Insertion Loss: | ≤ 0.3 DB |
|---|---|---|---|
| Fiber Type: | SM / MM | Fiber Cable Type: | 3x2mm Flat Cable, 2.0mm 3.0mm Cable |
| Application: | FTTH FTTB FTTX Network | Operating Temperature: | -40~75, -40°C ~ +80°C, -40 To +85 Degree, -45 To +85 |
| Return Loss: | > 55db | Lead Time: | 3-7working Days |
| High Light: | 50N Fiber Optic Fast Connectors,60s Fiber Optic Fast Connectors,FTTH simplex fiber connector |
||

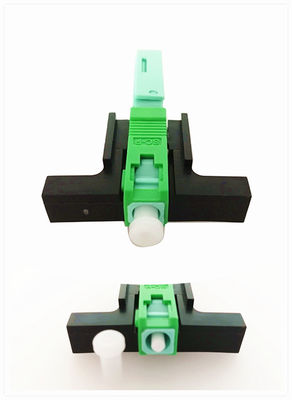

SC / APC Simplex FTTH Fiber Optic Fast Connector
Description
Quick connector is a good solution to field wiring and fiber-to-the home engineering connector. Assembly without glue, grinding and electrical tools, is widely used in construction section, the place need to quickly connect, to provide a fast and stable connector for the operation. It adopts the latest fiber formed technology. All the optical and mechanical index meet the patch cord standard, to achieve to make the patch cord via mechanical cold junction, it change the traditional splice opinion, offer the powerfull support for FTTx.
Feature
1. Quickly assembly connetor
2. High return loss,low insert
3. Cost effective portable
4. Install quickly
5. Reliable and superior optical performance
Application
1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
Spectification
|
Product name |
SC APC Fiber Optic Field Assembly Fast Connector |
|
Type |
Pre-Embedded |
|
Suitable optical fiber |
2.0*3.0 cable |
|
Fiber mode |
Single & Multi mode |
|
Installation time |
Within 60s ( No fiber cut ) |
|
Insertion loss |
≤ 0.3dB (Max 0.5) |
|
Return loss |
≥ 50dB |
|
Tensile strength |
> 50N |
|
Working Temperature |
-40~+75ºC |
|
Storage Temperature |
-40~+85ºC |
