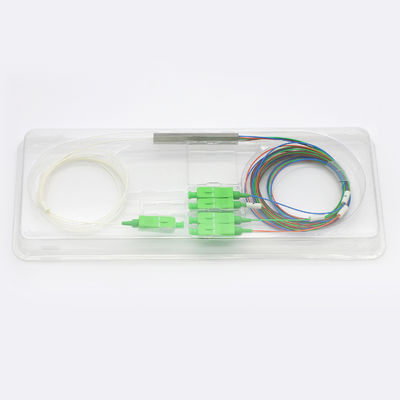

Steel Tube PVC G657A SC/APC Connector Optical Fiber Plc Splitter 1x4

I'm Online Chat Now

Steel Tube PVC G657A SC/APC Connector Optical Fiber Plc Splitter 1x4

Steel Tube PVC G657A SC/APC Connector Optical Fiber Plc Splitter 1x4
Steel Tube PVC G657A SC/APC Connector Optical Fiber Plc Splitter 1x4 Steel Tube PVC G657A SC/APC Connector Optical Fiber Plc Splitter 1x4

Large Image :  Steel Tube PVC G657A SC/APC Connector Optical Fiber Plc Splitter 1x4

Product Details:
Place of Origin: Qingdao,China
Brand Name: SUNET or OEM
Certification: ISO9001
Model Number: Steel Tube Type
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD3-5/Pcs
Packaging Details: One pcs in one plastic box/bag
Delivery Time: 5-8 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability: 5000000pcs per week

Steel Tube PVC G657A SC/APC Connector Optical Fiber Plc Splitter 1x4

Description
Product Name: Fiber Optic Splitter Type: 1x2 1x4 1x8 1x16 1x32
Fiber Type: G657A Application: FTTH FTTB FTTX Network
Material: PVC LSZH Option Connector Type: FC/SC/LC/ST
Wavelength: 1260 To 1650nm Cable Diameter: 0.9mm
Cable Length: 1m Or Customized Color: 12 Colors Are Available

Steel Tube PVC G657A SC/APC Connector Optical Fiber Plc Splitter 1x4





PLC Splitter Description



1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3). We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4). All products meet GR-1209-CORE and GR-1221-CORE requirements.



PLC Splitter Features



1. Low Insertion loss and Low PDL

2. Uniform power splitting

3. High reliability

4. Excellent environmental stability

5. Compact size and various package



PLC Splitter Applications



1. FTTx Systems

2. Digital, hybrid and AM-Video systems

3. LAN,WAN and Metro Networks

4. CATV systems

5. Other applications in fiber



PLC Splitter Specification



Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650nm

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)(S/P Grade)

4.0/3.8

7.3/7.0

10.5/10.2

13.6/13.5

16.9/16.5

21.0/20.4

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.5

Return Loss (dB) (S/P Grade)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature

Stability(-40~85 °C)(dB)



0.5



0.5



0.5



0.5



0.5



0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85



Packaging Dimension (mm) (L×W×H)





40×4×4





40×4×4





40×4×4





40×4×4





50×7×4





60×12×4





Notes: 1. Specified without connectors.      2. Add an additional 0.2dB loss per connectorSteel Tube PVC G657A SC/APC Connector Optical Fiber Plc Splitter 1x4 0
