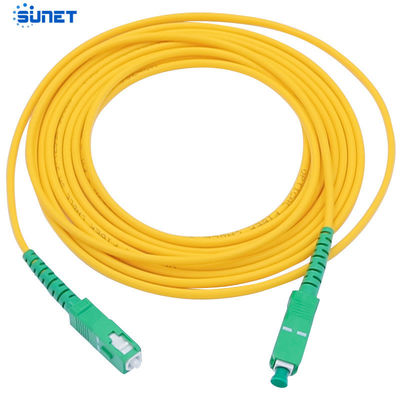

Product Details:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | Fiber Optic Patch Cord |
|---|---|---|---|
| Length: | 1.5m Or Customized | Connector: | SC/APC (LC |
| Fiber Type: | SM 9/125 G652D | Connector Type: | SC/APC |
| Certification: | ISO9001 | Type: | Singlemode |
| High Light: | APC Optical Fiber Patch Cord,SM Optical Fiber Patch Cord,Armored Fiber Optic Patch Cable |
||
Description
Fiber Optic Patch Cable is also known as Fiber Optic Jumper or Fiber Optic Patch Cord. It is composed of a fiber optic cable terminated
with different connectors on the ends. For the Fiber Patch Cables, there are two major application areas which are computer work station
to outlet and fiber optic patch panels or optical cross connect distribution center. We provide various types of fiber patch cords including
single mode, multimode, multi core, and armored versions. You can aslo find fiber optic pigtails and other special patch cables here, even
we supply MPO/MTP fiber cables.Our Fiber Patch Cables are standard terminated with LC/SC/ST/FC/MTRJ/MU/SMA connectors on both
ends.
Feature
Compliant with international standards such as ANSI, Bellcore, TIA/EIA, IEC, also accord with the industrial standards of Telecom in China
Realize the active link of optic fiber transmission
Low insertion loss and high return loss
Excellent repeatability and interchangeability
Specification
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) TIA/EIA-455-107 |
≤ 0.2dB (PC/UPC/APC) |
≤ 0.3dB (PC/UPC) |
| Return Loss(dB) TIA/EIA-455-107 |
≥50dB(PC/UPC) ≥60dB(APC) |
≥40dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
