Product Details:
Place of Origin: Qingdao,China
Brand Name: SUNET/OEM
Certification: ISO9001/ISO14001
Model Number: SNT5600
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: usd 700 per piece
Packaging Details: 1 pieces in 1 cartons package
Delivery Time: 6 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pieces per week

VFL OPM OTDR Optical Time Domain Reflectometer 1310nm 1550nm 26dB 24dB

Description
Warranty: 18 Months Wavelength(nm): 1310/1550
Applicable Fibers: SM/MM Maximum Dynamic Range(dB): 32/30
Type: Single Fiber Single Mode Event Dead Zone(m): 1
Attenuation Dead Zone(m): 6 Language: English/Spanish/French/Customized
High Light:

1310nm Optical Time Domain Reflectometer

,

24dB Optical Time Domain Reflectometer

,

Mini Pro OTDR

1310nm 1550nm 26dB 24dB VFL OPM OTDR Optical Time Domain Reflectometer



OTDR Description

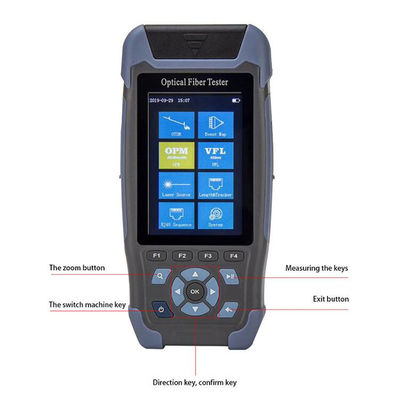

SNT3302S Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , cable sequence proofreading, cable length measurement and lighting functions. It could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging .It is a good choice for long term field work .



OTDR Specification





Mini-Pro OTDR

Model

SNT3302S

Wavelength

1310nm/1550nm±20nm

Fiber Type

G.652 SM Fiber

Dynamic Range

24dB/22dB

Event Blind Zone

3m

ATT Blind Zone

8m

Test Range

500m~60km

Pulse Width

3ns~10us

Ranging Accuracy

±(1m+Sampling Interval +0.005%×Test Distance)

Loss Accuracy

±0.2dB/dB

Sampling Points

16k~128k

Sampling Resolution

0.05m~8m

Reflection Accuracy

±3dB

Data Storage

Internal:≥600;External:TF Card

Laser Safety Level

Class Ⅱ level

File Format

SOR Standard File Format

Connector

FC/UPC(Interchangeable SC,ST)
