Product Details:
|

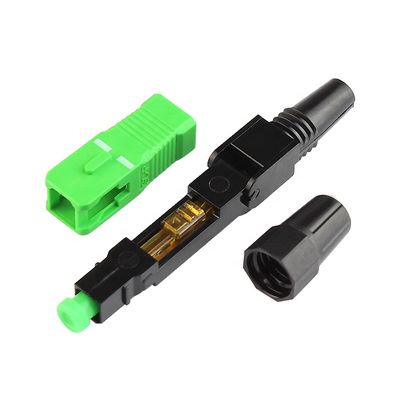

| Name: | Ftth Fast Connector | Type: | SC/APC |
|---|---|---|---|
| Color: | Green | Sheath Material: | PVC |
| Cable Diameter: | 0.9/2.0/3.0mm | Fiber Type: | G652D Or G657A |
| Warranty: | 3 Years | Application: | FTTH FTTB FTTX Network,CATV |
| Length: | 53mm 55mm 60mm | Connector Type: | SC FC LC |
| Certification: | ISO9001 | Operating Temperature: | -40 To 75℃ |
| Insertion Loss: | <0.3dB | Durability: | ≥ 1000 Times |
| Lead Time: | 3-7working Days | Material: | Zinc Alloy |
| Fiber Cable Type: | 3x2mm Flat Cable |
Packaging:
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping:
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
1.Quick Assembly SC connector can provide quick and easy terminations of fibers in the field, and options are available
for 900 micron and 250 micron.
2.It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels.
3.This connector system removes any requirement for epoxy, adhesives or costly curing ovens,
with features of high installation quality, high success rate and high reliability.
1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss.
1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications
Optical Characteristics
| Category | Specification | Remarks | |
| Aoolicable for | Drop cable.Indoor cable | ||
| Fiber mode | Single mode or Multi mode | ||
| Operation time | S | About 50(no fiber cut) | |
| Insertion Loss | dB | ≤0.5 | |
| Insertion Loss Typical value | dB | 0.3 | |
| Return Loss | dB | ≥50 | |
| Fastening strength of naked fiber | N | ≥5 | |
| Tensile strength | N | ≥50 | |
| Reusable | Time | ≥10 times | |
| Operating Temperature | ℃ | -40~+85 | |
| On-line tensile strength(20N) | dB | ΔIL≤0.3 | |
| Mechanical durability(500 times) | dB | ΔIL≤0.3 | |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 | |
Packaging:
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping:
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
1. Are you a manufacturer or trade company?
We are the manufacturer with 13 years' history.
2. What is your fiber brand ?
Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC
3. What is your main product ?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal Box, except that, we have very good prices for part of fiber tools!
4. How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost!
5. What is the quality for your product?
All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!
6. How do you arrange the shipping?
Solution A: SUNET take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Qingdao logistic company to do the shipping, SUNET follow the company's instructions and finish the shipping.
7. How can you guarantee the delivery time?
To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. We can regulate the penalty clause in the contract for the late delay.
8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
9. What is your quality control for your fiber optic product ?
1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ISO certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
