Product Details:
|
| Name: | Fiber Optic Fusion Splicer | Color: | Orange/Green |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Weight: | 8kg |
| Certification: | ISO9001/ISO14001/OHSAS18001/TLC | Material: | Metal And Plastic |
| Applicable Fibers: | SM / MM / DS / NZDS | Splicing Time: | 6-7 Seconds |
| Heating Mode: | Automatic Heating | ||
| High Light: | TLC Automatic Optical Fiber Fusion Splicer,OHSAS18001 Automatic Optical Fiber Fusion Splicer,OHSAS18001 fusion splicer |
||

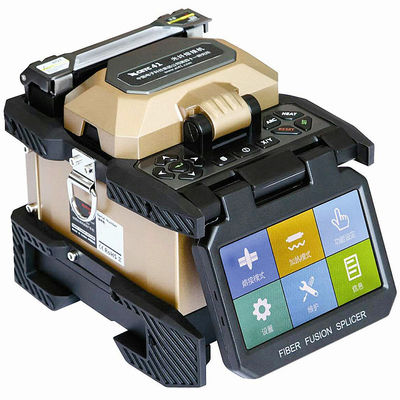

Obtaining 16 patens of invention and 58 technical innovations, a brand-new product—AV6481 Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers.
AV6481 implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with AV6471, our star product, AV6481 lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.
Features:
Precise fiber core alignment, ultra-low fiber fusion splicing consumption
7s fast fusion splicing, 18s highly efficient heating.
320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
300 groups of fusion splicing modes, 100 groups of heating modes
10000 groups of fusion records, 64 images storage
Ceramic presser foot, ceramic V-block, all-in-one fixture
Dual-direction splicing, automatic splicing, intelligent pyrocondensation
USB and SD card interfaces, U-disk automatic software upgrade
Built-in modular lithium battery, supports 220 times of splicing and heating cycles.
|
Model
Specification
|
6481A
|
6481B
|
|
Motor qty
|
6 motors
|
4 motors
|
|
Alignment method
|
Precise core alignment,
Cladding alignment, Manual alignment
|
Cladding alignment,
Manual alignment
|
|
Applicable fibers
|
Any common optical fibers, rubber-insulated fibers and jumpers that meet
requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
|
|
|
Optical fiber diameter
|
Cladding: 80~150μm, coating layer: 0.1~3mm
|
|
|
Splice loss(typical)
|
0.02dB(SMF) ; 0.01dB(MMF) ;
|
0.03dB(SMF) ; 0.02dB(MMF) ;
|
|
0.04dB(DSF) ; 0.04dB(NZDSF)
|
0.04dB(DSF) ; 0.04dB(NZDSF)
|
|
|
Heating time (typical)
|
Less than 18s
|
|
|
Tension test
|
1.96~2.25N
|
|
|
Protection sleeve
|
60mm, 40mm and a series of protection sleeves
|
|
|
Graphical display
|
High-performance 4.3 inch LCD
|
|
|
Magnification time
|
320 times/88 times, 700 times zoom
|
320 times/88 times
|
|
Fusion records
|
10000 groups/64 images
|
|
|
Remote maintenance
|
55W
|
|
|
Battery capacity
|
11.1V, ≥6400mAh
|
|
|
Battery service life
|
Cycle charging: 300~500 counts, can be replaced by customers
|
|
|
Electrode service life
|
Typical: 4000 counts, can be replaced by customers
|
|
|
Construction lighting
|
Built-in lights with high-brightness and wide lighting area
|
|
|
Working environment
|
Temp:-10~50℃; Hum: 0~95%RH, height above sea level: 0~6000m
|
|
|
Operation interfaces
|
GUI (graphical user interfaces)
|
|
|
External power
|
AC: 100~240V, 60Hz, 0~1.5A; DC: 10~15V
|
|
|
Port
|
USB / SD
|
|
|
Dimensions
|
120mm(W) ×130mm(H) ×154mm(D)(without rubber anti-vibration pad)
|
|
|
Weight
|
1.8kg (the battery not included) ,
2.1kg(included the battery)
|
1.65kg (the battery not included) ,
1.95kg(included the battery)
|
Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are
installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive
collection of lengths and connectors to fulfill your demand for the deployment.
| Parametor | Unit | Value | |||
| Connector Type | FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO | ||||
| Fiber Type | Multi-Mode | Single Mode | |||
| Insertion Loss | dB | Max.≤0.2 | Max.≤0.3 | ||
| Return Loss(Typ.) | dB | ≥36(no APC connector) | /PC | /UPC | /APC |
| ≥45 | ≥50 | ≥60 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| Connection Durability | times | ≥1000 | |||
| Operating/Storage Temperature | ℃ | -40~+80 | |||
1. Are you a manufacturer or trade company?
We are the manufacturer with 13 years' history.
2. What is your fiber brand ?
Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC
3. What is your main product ?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal Box, except that, we have very good prices for part of fiber tools!
4. How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost!
5. What is the quality for your product?
All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!
6. How do you arrange the shipping?
Solution A: SUNET take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Qingdao logistic company to do the shipping, SUNET follow the company's instructions and finish the shipping.
7. How can you guarantee the delivery time?
To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. We can regulate the penalty clause in the contract for the late delay.
8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
9. What is your quality control for your fiber optic product ?
1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ISO certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
