0.9mm Mpo Pigtail

0.9mm Mpo Pigtail
0.9mm Mpo Pigtail 0.9mm Mpo Pigtail

Large Image :  0.9mm Mpo Pigtail

Product Details:
Place of Origin: Qingdao,China
Brand Name: SUNET/OEM
Certification: ISO9001 ISO14001
Model Number: SC/UPC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 0.19-0.24/pcs
Packaging Details: Plastic Bag or as Order
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 Piece/Pieces per Month

0.9mm Mpo Pigtail

Fiber Type: G652D/G657A1/G657A2/Customized Connector Type: SC/Upc
Insertion Loss: ≤0.3dB Jacket Material: PVC/LSZH
Return Loss: >55dB Application: FTTH FTTB FTTX Network
Length: 1m 2m 3m Or Customized Color: Yellow/White Or Cusomized
High Light:

0.9mm Mpo Pigtail


G657A1 Mpo Pigtail


55dB om3 pigtail

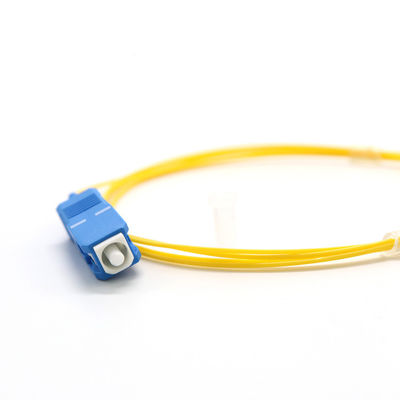

Sc/Upc Single Mode Simplex 0.9mm Fiber Optic Pigtail


Fiber Optic Pigtail is important of optical network.They have same or different connectors which are installed on the end of fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


1. Price-Competitive

2. Low Insertion Loss & PDL

3. Factory-terminated and Tested

4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber

5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

6. Polishing Options:PC/UPC/APC

7. Feature Connector with Ceramic Ferrules




1. Access Network

2. Telecom/CATV

3. Systems FTTX


Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Loss (dB) ≤0.25dB ≤0.3dB
Return Loss (dB) ≥50dB(PC/UPC) ≥40dB(PC/UPC)
TIA/EIA-455-107 ≥60dB(APC)
Exchange-ability ≤0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature (ºC) -10 ~ +70
Storage Temperature (ºC) -40 ~ +85
Package 1 pieces/bag
All values specified are with connectors
