Home ProductsFiber Optic PLC Splitter

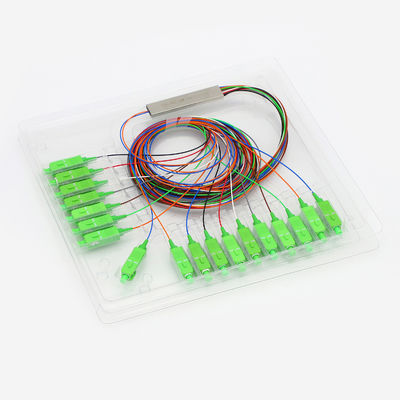

12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter

I'm Online Chat Now

12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter

12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter
12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter 12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter 12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter 12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter 12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter

Large Image :  12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter

Product Details:
Place of Origin: Qingdao,China
Brand Name: SUNET or OEM
Certification: ISO9001
Model Number: Steel Tube Type
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD3-5/Pcs
Packaging Details: One pcs in one plastic box/bag
Delivery Time: 5-8 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability: 5000000pcs per week

12 Colors 1.5m PVC PLC SMF 28e Fiber Tube Splitter

Description
Product Name: PLC Splitter Type: 1x16
Fiber Type: G657A Application: FTTH FTTB FTTX Network
Material: PVC LSZH Optional Connector Type: SC/APC
Wavelength: 1260 To 1650nm Cable Diameter: 0.9mm
Cable Length: 1m 1.5m Or Customized Color: 12 Colors Are Available
High Light:

SMF 28e Fiber Tube Splitter

,

1.5m Fiber Tube Splitter

,

PVC fibre optic cable splitter



1x16 Steel Tube PVC G657A 0.9mm 1m SC/APC PLC Fiber Optic Splitter



Fiber Optic PLC Splitter Description



1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3). We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4). All products meet GR-1209-CORE and GR-1221-CORE requirements.



Fiber Optic PLC Splitter Features



1. Low Insertion loss and Low PDL

2. Uniform power splitting

3. High reliability

4. Excellent environmental stability

5. Compact size and various package



Fiber Optic PLC Splitter Applications



1. FTTx Systems

2. Digital, hybrid and AM-Video systems

3. LAN,WAN and Metro Networks

4. CATV systems

5. Other applications in fiber



Fiber Optic PLC Splitter Specification



Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A SMF-28e or customer specified

Insertion Loss (dB)(S/P Grade)

4.0/3.8

7.3/7.0

10.5/10.2

13.7/13.5

16.9/16.5

21.0/20.5

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.5

Return Loss (dB) (S/P Grade)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature

Stability(-40~85 °C)(dB)



0.5



0.5



0.5



0.5



0.5



0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85



Packaging Dimension (mm) (L×W×H)





40×4×4





40×4×4





40×4×4





40×4×4





50×7×4





60×12×4





Notes: 1. Specified without connectors.      2. Add an additional 0.2dB loss per connector
