Product Details:
Place of Origin: Qingdao
Brand Name: SUNET/OEM
Certification: ISO9001/ISO14001
Model Number: SNT-FDC
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: USD 30-50 per roll
Packaging Details: 1 roll in one carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000000 km per week

ISO14001 Self Supporting PVC 2 Core Ftth Drop Cable

Description
Fiber Type: G652D/G657A1/G657A2 Strength Member: FRP/KFRP/Steel Wire
Fiber Count: 1/2/4/6/8/12 Core Jacket: LSZH/ PVC
Application: FTTH Product Name: FTTH Drop Cable
Color: Black/white Length: 1km/2km/Customized
High Light:

PVC 2 Core Ftth Drop Cable

,

FRP 2 Core Ftth Drop Cable

,

ISO14001 2 core outdoor fiber optic cable

Self-supporting 2 Cores FRP LSZH FTTH Drop Fiber Optic Cable

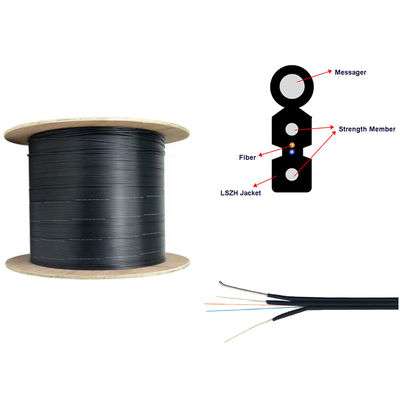

Drop Cable Description:



Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ).The cable is

protected by a dielectric strength member, suitable for direct aerial installationinto the houses in FTTH projects.



Drop Cable Features:



1. Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.

2. Meet the requirement of thunder-proof, anti-rodent or waterproof

3. Good to use for fiber to the home last mile solution.



Drop Cable Application:



1. Outdoor aerial application.

2. Used in the FTTH projects.

3. High speed optical routes in building



Drop Cable Parameters



Item

Technology parameter

Cable type

Drop Cable

Cable Count

1 2 4 6 8 12

Fiber color

Green, Yellow

Fiber type

9/125 (G657A2)

Sheath color

Black and white

Sheath material

LSZH

Cable dimension (mm)

3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)

Cable weight (Kg/km)

15

Min. bending radius (mm)

10 (Static) 25 (Static) 30 (Static) 60 (Static)

Attenuation (dB/km)

0.4 at 1310nm, 0.3 at 1550nm

Short term tensile ( N)

200; 600

Crush resistance (N/100mm)

1000; 2200

Operation temperature (℃)

-20~+70℃







strength member

material

Galvanized steel wire/FRP/KFRP

diameter

2*(0.5~0.8)mm

Self support Messenger wire

material

Galvanized steel wire

diameter

1.0mm

Outer sheath

material

LSZH

diameter

1.8±0.2mm

Cable size (Height * width)

2.0(±0.1) mm × 5.2(±0.2)mm

Cable sheath thickness

Max. 0.8mm/Min. 0.4mm

Messenger sheath thickness

0.5~0.7mm

Cable weight

1~2core

18.2KG

4-6 core

18.5KG

8~24core

54KG
