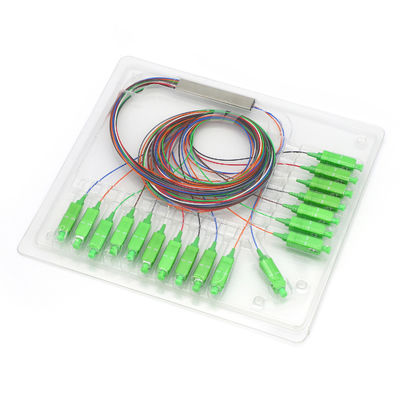

2x16 Steel Tube 1m SC APC Passive Fiber Optic PLC Splitter

I'm Online Chat Now

2x16 Steel Tube 1m SC APC Passive Fiber Optic PLC Splitter

2x16 Steel Tube 1m SC APC Passive Fiber Optic PLC Splitter
2x16 Steel Tube 1m SC APC Passive Fiber Optic PLC Splitter 2x16 Steel Tube 1m SC APC Passive Fiber Optic PLC Splitter 2x16 Steel Tube 1m SC APC Passive Fiber Optic PLC Splitter

Large Image :  2x16 Steel Tube 1m SC APC Passive Fiber Optic PLC Splitter

Product Details:
Place of Origin: Qingdao,China
Brand Name: SUNET or OEM
Certification: ISO9001
Model Number: Steel Tube Type
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD6-12.9/Pcs
Packaging Details: One pcs in one plastic box/bag
Delivery Time: 5-8 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability: 5000000pcs per week

2x16 Steel Tube 1m SC APC Passive Fiber Optic PLC Splitter

Description
Product Name: PLC Splitter Type: 2x16
Connector Type: SC/APC Fiber Type: G657A
Application: FTTH FTTB FTTX Network Material: PVC LSZH Optional
Wavelength: 1260 To 1650nm Cable Diameter: 0.9mm
Cable Length: 1m Or Customized Color: 12 Colors Are Available
High Light:

2x16 Fiber Optic PLC Splitter

,

Passive Fiber Optic PLC Splitter

,

GR 1209 CORE passive optical splitter



2x16 Steel Tube G657A 0.9mm 1m SC/APC Passive Fiber Optical Splitter



Fiber Optic PLC Splitter Description



1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3). We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4). All products meet GR-1209-CORE and GR-1221-CORE requirements.



Fiber Optic PLC Splitter Features



1. Low Insertion loss and Low PDL

2. Uniform power splitting

3. High reliability

4. Excellent environmental stability

5. Compact size and various package



Fiber Optic PLC Splitter Applications



1. FTTx Systems

2. Digital, hybrid and AM-Video systems

3. LAN,WAN and Metro Networks

4. CATV systems

5. Other applications in fiber



Fiber Optic PLC Splitter Specification



1xN PLC Splitter((Room temperature, including connector loss)



type

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength(nm)

1260-1650nm

Insertion loss(dB)

Max

4.1

7.5

10.7

13.9

17.2

20.6

Loss uniformity(dB)

Max

0.5

0.6

0.8

1.0

1.5

2.0

Return Loss(dB)

≥50

≥50

≥50

≥50

≥50

≥50

Polarization Dependent Loss(dB)

Max

0.2

0.2

0.3

0.3

0.3

0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Fiber Type

Corning smf-28e or customer designation

Wavelength Dependent Loss(dB)

Max

0.6

0.6

0.6

0.8

0.8

0.8



Temperature correlation loss-40~85℃(dB

Typical value

0.2

0.2

0.3

0.4

0.4

0.4

Max

0.5

0.5

0.5

0.5

0.5

0.5

Working Temperature(℃)

-40~85℃

Storage Temperature(℃)

-40~85℃



2xN PLC Splitter((Room temperature, including connector loss)



type

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength(nm)

1260-1650nm

Insertion loss(dB)

Max

4.3

7.8

11.1

14.4

17.7

20.7

Loss uniformity(dB)

Max

0.5

0.6

0.8

1.0

1.5

2.0

Return Loss(dB)

≥50

≥50

≥50

≥50

≥50

≥50

Polarization Dependent Loss(dB)

Max

0.2

0.2

0.3

0.3

0.3

0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Fiber Type

Corning smf-28e or customer designation

Wavelength Dependent Loss(dB)

Max

0.6

0.6

0.6

0.8

0.8

0.8



Temperature correlation loss-40~85℃(dB)

Typical value

0.2

0.2

0.3

0.4

0.4

0.4

Max

0.5

0.5

0.5

0.5

0.5

0.5

Working Temperature(℃)

-40~85℃

Storage Temperature(℃) -40~85℃
