|Connector:||SC UPC APC||Insertion Loss:||≤0.3dB|
|Fiber Type:||SM/MM||Fiber Cable Type:||3x2mm Flat Cable/3.1*2.0mm Butterfly Optical Cable|
|Application:||FTTH FTTB FTTX Network||Durability:||≤ 0.2db Typical Change|
55mm Fiber Optic Fast Connectors,
ISO9001 Fiber Optic Fast Connectors,
0.3dB apc upc connector

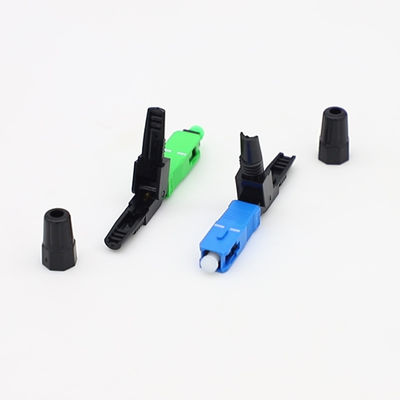

Drop Cable SC/APC SC/UPC FTTH Fiber Optic Fast Connector
Quick Connector Description
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Quick Connector Feature
1. Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products.
2. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
3. With embedded optical fiber type structure .
4. Installed with high quality and high success rate and fast and other characteristics .
5. Can be reused, the scene is simple.
6. Easy to carry
Quick Connector Application
1.Used to open the FTTH fiber terminal end.
2.In the box, cabinet, such as wiring into the box.
3.Off the back of the accidents such as fiber, maintenance.
4.LAN, wan, data and video transmission.
5.The construction of the fiber end user access and maintenance. 6.Optical fiber access of mobile base station.
Quick Connecrtor Specification
