Product Details:
|
| Product Name: | Fiber Attenuator | Type: | Male-female |
|---|---|---|---|
| Connector Type: | LC/SC/FC/ST | Attenuation Range: | 1~30dB Or Custom |
| Warranty: | 1 Year | Material: | Metal/Plastic |
| Fiber Type: | Single Mode | Polarization Dep Loss: | <0.2dB |
| High Light: | 15dB Fixed Optical Attenuator,10dB Fixed Optical Attenuator,LC 5db attenuator optical fiber |
||

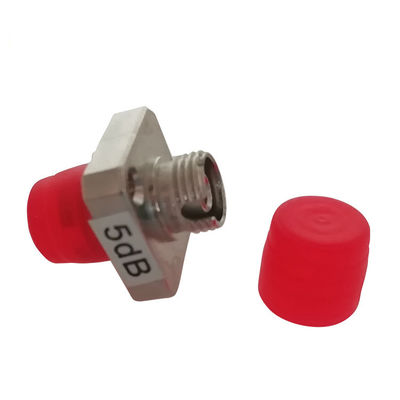

Fiber Optic Attenuator FC LC ST SC 5dB 10dB 15dB Fixed Attenuator
Description:
Optical fiber attenuator is an electronic device that reduces the amplitude of an electronic signal.
Features:
Low insertion loss and back reflection
Definable attenuation from 1dB to 30dB
PC, UPC and APC polish types
Available with FC, SC, ST and LC terminations
Application:
Telecommunication Networks
Local Area Network
FTTH and FTTx
Fiber Optic Sensors
Test & measurement
DWDM applications
Parameters:
| Optical Performance | M-F Plug Type | F-F Adaptor Type |
| Testing Wavelength(nm) | SM: 1310nm/1550nm | 1310nm |
| MM: 850nm/1300nm | ||
| Attenuation Accuracy(dB) | 1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value | |
| Return Loss(dB) | ≥50dB (PC) | ≥50dB (PC) |
| ≥60dB (APC) | ≥60dB (APC) | |
| Input Power (Max.) (mW) | 300 | |
| Durability(dB) | <0.2dB Typical, 1000 Matings | |
| Operating Temperature(°C) | -40~+80 | |
| Storage Temperature(°C) | -40~+85 | |
