Product Details:
|
| Applicable: | SM / MM | Coating Diameter: | 125µm |
|---|---|---|---|
| Core Number: | Single Core | Cleave Length: | 9mm-16mm |
| Weight: | 300g | Material: | Cool Steel |
| Transport Package: | Carton | Capacity: | 12 24 48 96 144 Cores |
| High Light: | 125µm Precision Fiber Cleaver,SM Precision Fiber Cleaver,MM optical cleaver |
||

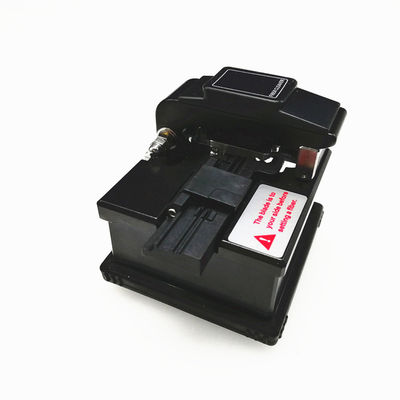

Fiber Optic Cutting Tool For FTTH FTTB FTTX Network Fiber Cleaver
Description
Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing.
Using Cleaver , please be cautious of the following particulars and prevent your body and property from harm and use carefully and usefully.
Keep Cleaver away from water.
Place Cleaver away from humid and dusty place.
High temperature causes transforming, so keep it in normal emperature.
Be careful with serious impact on it.
Be sure that the stripped fiber length should be at least 12mm or longer.
Clean the Cutting Edge Rubber Pad regularly with alcohol. Try not to use acetone or solvent
Feature
1. High cutting quality.
2. Durable design.
3. Replaceable blade.
4. Simple operation and Easy maintenance.
5. Leather carrying case
6. One-year warranty
Application
1. Used for Single and Ribbon Fiber Cleaving
2. Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
3. Prevents Double Scoring of the Fibers
4. Has Superior Blade Height and Rotational Adjustment
5. Available With Automatic Fiber Scrap Collection
6. Can Be Operated With Minimal Steps
Specification
|
Bare fiber diameter |
125µm |
|
Outercoat diameter |
0.25~0.9mm |
|
Fiber type |
Single tube fiber |
|
Cleaved length |
5~3mm |
|
Cleaved angle |
0.5° |
|
blade life |
48000 |
|
Mode |
Semiautomatic |
|
Dimension |
94(W)×55(D)×49mm(H) |
|
Weight |
300g |
