Product Details:
|
| Connector: | SC/APC | Making Rings: | NO |
|---|---|---|---|
| Package: | 1 Piece 1 Box | Application: | FTTH |
| Material: | PVC | Insertion Loss: | 16.8dB |
| Product Name: | Fiber Optic PLC Splitter | Fiber Type: | Single Mode |
| Operating Temperature: | -40~+85℃ | Return Loss: | 55/50(DB) |

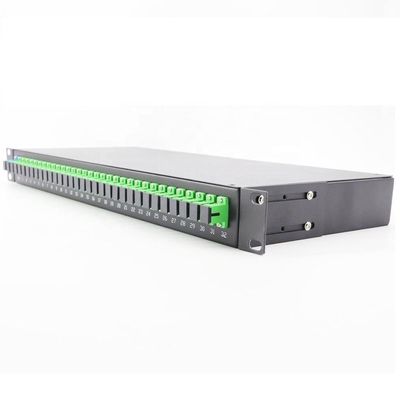

| High Light: | Rack Type Fiber Optic PLC Splitter,Apc Connector Fiber Optic PLC Splitter,Low Insertion 1x4 Plc Splitter |
||
Describtion
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.
Feature
·High Stability and Reliability
· Telcordia GR-1209 and GR-1221 Compliance
· Local Area Networks (LAN)
· Cable Television (CATV)
Application
♦ PON networks
♦ Telecommunication networks
♦ FTTH networks
♦ Data Processing networks
♦ Data Communication
♦ Wide Area Networks(WANs)
| Parameter | Specification | ||||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
| Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
| Insertion Loss (dB) Max | <7.3 | <10.4 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
| Uniformity (dB) Max | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| PDL(dB)Max | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.4 |
| Directivity (dB) Min | 55 | ||||||||
| Return Loss (dB) Min | 55(50) | ||||||||
| Operating Temperature (°C) | -4~ +85 | ||||||||
| Storage Temperature (°C) | -4~ +85 | ||||||||
| Fiber length | 1m or custom length | ||||||||
| Fiber Type | G.657A or Customized | ||||||||
| Connector Type | Custom specified | ||||||||
| Power Handling (mW) | 300 | ||||||||
