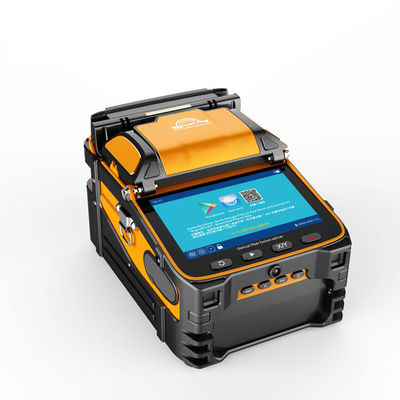

Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers

I'm Online Chat Now

Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers

Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers
Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers

Large Image :  Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers

Product Details:
Place of Origin: Qingdao,China
Brand Name: SUNET/OEM
Certification: ISO9001/ISO14001
Model Number: SNT-FOFS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD 800-900
Packaging Details: 1 pc in one carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pcs per week

Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers

Description
Product Name: Fiber Optic Fusion Splicer Focus Mode: 6 Motors Auto Focus
Warranty: 18 Months Applicable Fibers: SM/MM
Splicing Time: 6-7 Seconds Color: Golden
Application: FTTH FTTB FTTX Network Heating Mode: Automatic Heating(Preheatin)
High Light:

AI-9 Optical Fiber Fusion Splicer

,

SM Fibers Optical Fiber Fusion Splicer

,

Automatic AI9 Splicer

High Quality Automatic Splicing Machine Optical Fiber Fusion Splicer AI-9



AI-9 Fusion Splicer Description



AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.



Fusion Splicer Main Characteristics



1. Compact, light weight

2. 5s fast splicing, 15s highly efficient heating

3. 320 times image magnification, 5mm fusion for ultra-short cleave length

4. 300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records / 64 images storage

5. Ceramic presser foot, ceramic V-groove, all-in-one fixture

6. Dual-directional fusion, auto fusion, intelligent heat shrink

7.  USB and SD card interface, auto update by USB

8.  Built-in modular lithium-ion battery, at least 220 times of splicing and heating

9.  GUI and touch screen, easy to operate

10. Dust-resistant, water-resistant, shock-resistant



Fusion Splicer Specification



item

value

Place of Origin

China



Shandong

Brand Name

signal fire

Model Number

AI-9

Type

Testers &Tools

No. of Fiber

6.

Use

ftth

splicing time

5s

Focus mode

6 motors, auto focus

Splicing mode

normal/high precision splicing

color

orange

Built-in lighting

easy for night operation

Purpose

automatic splicing

Heating time

15S

Heating mode

automatic heating (preheating)

Built-in battery

7800 mAH lithium battery

Warranty

18 months



Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers 0

Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers 1

Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers 2

Automatic Splicing Optical Fiber Fusion Splicer AI-9 For SM / MM Fibers 3
