Product Details:
|
| Type: | ABS Box Type | Length: | 0.5/1/1.5M |
|---|---|---|---|
| Color: | Yellow | Making Rings: | Yes |
| Package: | 1 Piece 1 Box | Application: | FTTH |
| Material: | PVC | Fiber Type: | Single Model |
| Return Loss: | 55/50(DB) | Operator Temperature: | -40~+85℃ |
| Highlight: | ABS BOX Fiber Optic PLC Splitter,UPC Connectors Fiber Optic PLC Splitter,SC 1x16 Splitter |
||
Describtion

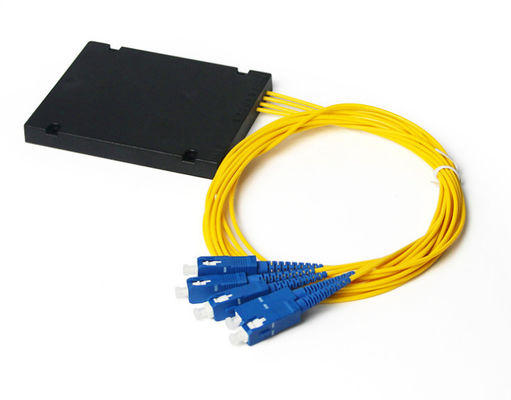

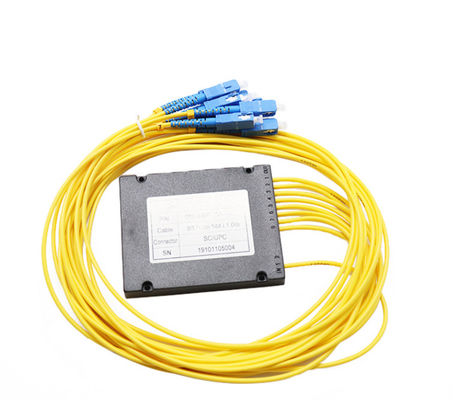

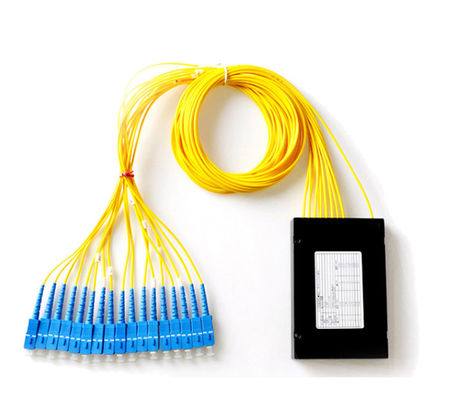

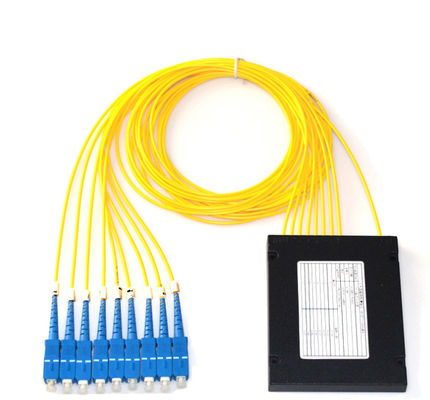

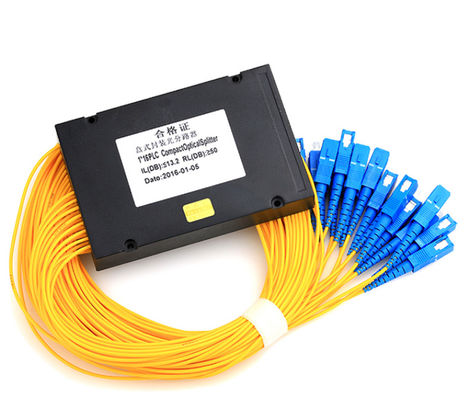

ABS Box PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.
Feature
·Low Insertion Loss
· Low Polarization Dependent Loss
· Local Area Networks (LAN)
· Wide Operation Wavelength
· Test Equipment
Application
♦ Active dvice termination
♦ Telecommunication networks
♦ CATV links
♦ Data Communication
♦ Test Equipment
♦ Wide Area Networks(WANs)
| Parameter | Specification | ||||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
| Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
| Insertion Loss (dB) Max | <7.3 | <10.4 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
| Uniformity (dB) Max | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| PDL(dB)Max | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.4 |
| Directivity (dB) Min | 55 | ||||||||
| Return Loss (dB) Min | 55(50) | ||||||||
| Operating Temperature (°C) | -5~ +75 | ||||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||||
| Fiber length | 1m or custom length | ||||||||
| Fiber Type | Corning SMF-28e fiber | ||||||||
| Connector Type | Custom specified | ||||||||
| Power Handling (mW) | 300 | ||||||||
