Product Details:
|
| Product Name: | FTTH Optical Distribution Frame | Module Type: | Rack Mounting |
|---|---|---|---|
| Type: | 12-144 Ports | Connector Type: | SC LC FC ST |
| Color: | Grey Or Black | Material: | Cold Rolled Steel Or Galvanized Iron Plate |
| Application: | FTTH FTTB FTTX Network | Package: | Carton |
| High Light: | SC UPC Fiber Optic Terminal Box,24 Cores Fiber Optic Terminal Box |
||

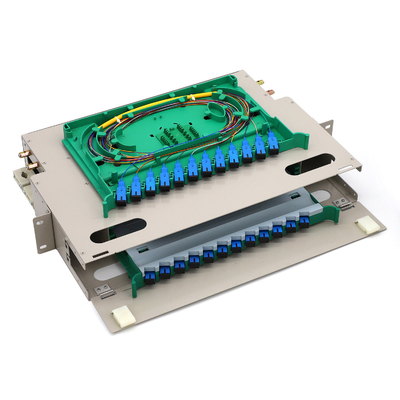

24 Cores SC/UPC Fiber Optic Terminal Box Optical Patch Panel ODF
ODF Description
Optical Distribution Frame (ODF) is integrated components in any fiber management system to handle termination and cross-connection of cables. Pre-terminated ODFs with cables are pre-installed with connectors and cable for quick and easy installation. Units with pre-terminated cables offer advantages such as faster installation, resulting in shorter time to revenue as well as guaranteed quality and performance. We offer optical distribution frame in different size, such as 1U 12 ports, 1U 24 ports, 2U 36ports, 3U 48 ports, 4U 72 ports. Several adapter options are available.
ODF Features
1•19'' standard structure, rack mounting.sliding design,nice appearance.
2• A pothook convenient to install and dismantle
3• Splice tray could be piled one upon another, flexible to turn
4• Unique structure, reasonable layout, adequate room for operation
5• Adjustable clamp seal ring and reinforce configuration
6• With excellent seal performance, preventing water from entering effectively
7• Rack mount in optical distribution frame ODF
ODF Application
· Telecommunications subscriber loop
· Fiber to the home (FTTH)
· LAN/WAN
· CATV
ODF Specifications
|
Fiber capacity |
12/24/48/72/96/144 cores |
|
Fiber Port |
FC, SC, ST and LC |
|
Number of ODF disks |
12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12 |
|
Working temperature |
-10 °C ~ +40 °C |
|
Storage temperature |
-25 ° C ~ +55 ° C |
|
Relative humidity |
≤ 85% (+30 ° C) |
|
Atmospheric pressure |
70Kpa~106Kpa |
|
Nominal operating wavelength |
850nm, 1310nm, 1550nm |
|
Insertion loss |
≤ 0.5dB |
|
Return loss |
PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB |
|
Electrical strength |
≥3KV(DC)/1min without breakdown |
|
Insulation resistance |
≥1000MΩ/500V (DC) |
|
Life |
≥1000 times |
|
Application range |
Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station |
Cold-Rolled Steel Sheet Materials,thickness 1.0/1.2/1.5mm optional
