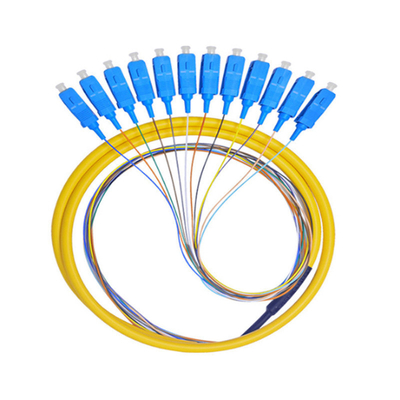

SC UPC LSZH G657A1 Tight Tube Fiber Pigtails Patch Cords 0.9mm

SC UPC LSZH G657A1 Tight Tube Fiber Pigtails Patch Cords 0.9mm
SC UPC LSZH G657A1 Tight Tube Fiber Pigtails Patch Cords 0.9mm SC UPC LSZH G657A1 Tight Tube Fiber Pigtails Patch Cords 0.9mm

Large Image :  SC UPC LSZH G657A1 Tight Tube Fiber Pigtails Patch Cords 0.9mm

Product Details:
Place of Origin: Qingdao, China
Brand Name: SUNET/OEM
Certification: ISO9001/ISO14001
Model Number: Sc/Upc
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: usd 1-2 per piece
Packaging Details: 1 piece in 1 bag package
Delivery Time: 3-8 days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 100000 pieces per week

SC UPC LSZH G657A1 Tight Tube Fiber Pigtails Patch Cords 0.9mm

Description
Fiber Type: G652D/G657A1/G657A2/Customized Connector Type: SC/UPC
Insertion Loss: ≤0.3dB Jacket Material: PVC/LSZH
Length: 1m/2m/3m/Customized Color: Yellow/Orange/Aqua/customized
Fiber Count: Simplex Quality Control: 100% Test Before Shipping
High Light:

0.9mm Fiber Pigtails Patch Cords

,

SC UPC Fiber Pigtails Patch Cords

,

LSZH G657A1 Fiber Optic Pigtail

SC UPC LSZH G657A1 Tight Tube 0.9mm Fiber Pigtails Patch Cords



Pigtail Description



1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: Simplex, duplex or customized
5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum



Pigtail Feature



1. Price-Competitive

2. Low Insertion Loss & PDL

3. Factory-terminated and Tested

4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber

5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

6. Polishing Options:PC/UPC/APC

7. Feature Connector with Ceramic Ferrules



Pigtail Application



1. Access Network

2. Telecom/CATV

3. Systems FTTX



Pigtail Specification



Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G652D/G657A1/G657A2)

MM(OM1/OM2/OM3)

Jacket Materials

LSZH/PVC

Connector Type

SC/LC/ST/LC/MPO/E2000

Ferrule Materials

Ceramic

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Losss(dB)TIA/EIA-455-107

≤ 0.2dB(PC/UPC/APC)

≤ 0.3dB(PC/UPC)

Return Loss(dB)TIA/EIA-455-107

≥45dB(PC/UPC) ≥55dB(APC)

≥35dB(PC/UPC)

Exchangeability

≤ 0.2dB

Cable Assemblies

Pigtail/Simplex

Operating Temperature (° C)

-10~ + 70

Storage Temperature (° C)

-40 ~ +85

Package

1unit/bag

*All values specified are with connectors.
