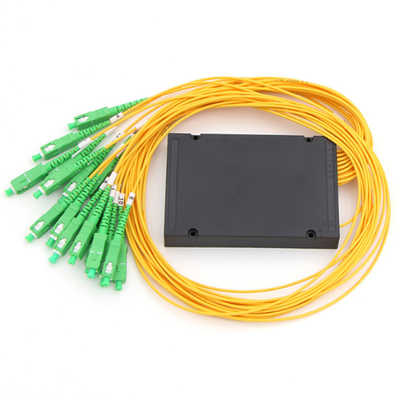

Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter

I'm Online Chat Now

Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter

Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter
Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter
Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter

Large Image :  Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter

Product Details:
Place of Origin: China
Brand Name: SUNET/OEM
Certification: ISO9001/ISO14001
Model Number: 1*2/1*4/1*8....
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: usd 1.35-9.52per piece
Packaging Details: 1 pieces in 1 bag package/blister box package
Delivery Time: 3-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per week

Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter

Description
Material: PVC Fiber Type: G657A1
Connector Type: SC/LC/FC/ST Wavelength: 1260-1650nm
Length: 0.5m/1m/Customized Application: FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution

Hot Sale ABS Box Type 1*2 1*4 1*8 PLC Splitter



PLC Splitter Description



Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use



PLC Splitter Feature



1. Low Insertion loss and Low PDL

2. Uniform power splitting

3. High reliability

4. Excellent environmental stability

5. Compact size and various package



PLC Splitter Application



1. FTTx Systems

2. Digital, hybrid and AM-Video systems

3. LAN,WAN and Metro Networks

4. CATV systems

5. Other applications in fiber optic systems



PLC Splitter Specification



Model Output tube diameter Inlet/ outlet fiber length Pipe Sizes
1×2 splitter 0.25mm/0.9mm 1M 4mm*7mm*50mm
1×4 splitter 0.25mm/0.9mm 1M 4mm*7mm*50mm
1×8 splitter 0.25mm/0.9mm 1M 4mm*7mm*60mm
1×16 splitter 0.25mm/0.9mm 1M 4mm*12mm*60mm
1×32 splitter 0.25mm/0.9mm 1M 6mm*20mm*80mm
1×64 splitter 0.25mm/0.9mm 1M 6mm*40mm*100mm



1×N PLC Splitter (Measured at room temperature and excludes connector loss)



Type 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength(nm) 1260-1650nm
Insertion loss(dB) Max 3.8 7.2 10.2 13.5 16.5 20.5
Loss uniformity(dB) Max 0.5 0.6 0.8 1.0 1.5 2.0
Return Loss(dB) ≥50 ≥50 ≥50 ≥50 ≥50 ≥50
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Fiber Type Corning smf-28e or customer designation
Wavelength Dependent Loss(dB) Max 0.6 0.6 0.6 0.8 0.8 0.8



Temperature correlation loss-40~85℃(dB)

Typical value 0.2 0.2 0.3 0.4 0.4 0.4
  Max 0.5 0.5 0.5 0.5 0.5 0.5
Working Temperature(℃) -40~85℃
Storage Temperature(℃) -40~85℃



2×N PLC Splitter (Measured at room temperature and excludes connector loss)



type 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength(nm) 1260-1650
Insertion loss(dB) Max 4.0 7.4 10.5 13.9 17.0 20.5
Loss uniformity(dB) Max 0.5 0.6 0.8 1.0 1.5 2.0
Return Loss(dB) ≥50 ≥50 ≥50 ≥50 ≥50 ≥50
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Fiber Type Corning smf-28e G657A1  or customer designation
Wavelength Dependent Loss(dB) Max 0.6 0.6 0.6 0.8 0.8 0.8



Temperature correlation loss-40~85℃(dB)

Typical value 0.2 0.2 0.3 0.4 0.4 0.4
Max 0.5 0.5 0.5 0.5 0.5 0.5
Working Temperature(℃) -40~85℃
Storage Temperature(℃) -40~85℃
