Product Details:
|
| Fiber Count: | 1-144 Cores | Material: | Stainless Steel |
|---|---|---|---|
| Application: | Drop Cable And ADSS Cable Fixing | Surface Treatment: | Hot-DIP Galvanized |
| Weight: | 0.022kg/0.044kg | Length: | 155mm,220mm,260mm |
| Color: | Metallic Color Silver | Packing: | Carton And Nylon Bag |
| High Light: | 220mm Fiber Optic Cable Anchor Clamps,144Cores Anchor Clamps |
||

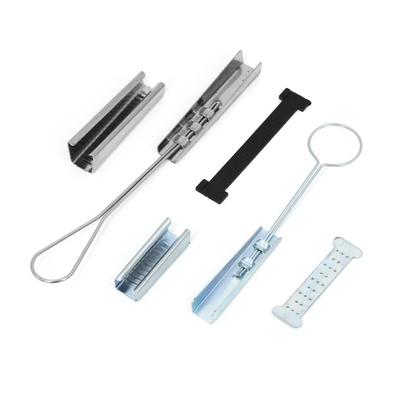

FTTH Flat Drop Cable Accessories Anchor Clamps Fiber Optic Cable Fittings
Description:
FTTH Drop Fiber Cable Wire Clamp is used to connect an overhead fiber cable to optical devices or a house, widely used indoor/outdoor installation.
This drop cable clamp is made of stainless materials, guarantees a long time of usage. Drop tension clamp is equipped with stainless steel perforated shim, which increases the tension load on stainless steel clamp without cable slip and damage. The stainless steel tail wire/ bail allows installations on walls, poles with drive hooks, pole brackets, FTTH brackets, and other drop wire fitting or hardware.
Full stainless steel or plastic shims are available and all the assemblies passed the tensile tests.
Feature:
Good anti-corrosion performance
High strength
Abrasion and wear resistant.
Maintenance-free.
Easy installation.
Removable.
The serrated shim increases the adhesion of stainless steel wire clamp on cables and wires.
The dimpled shims protect cable jacket from being damaged.
Application:
Product Parameters
|
Product Name |
Drop cable clamp |
|
Application |
Overhead Line Accessories |
|
Wire diameter |
2~8mm |
|
Surface treatment |
Hot-dip galvanized |
|
Color |
Silver |
|
Weight |
45g |
|
Maximum stretch |
200-220mm |
|
Function |
drop cable and adss cable fixing |
|
Type |
Hardware Fittings |
|
Sample |
FREE |
|
Product Keywords |
Ftth Clamp,Ftth Drop Cable Clamp,suspension clamp |
Related accessories:
