|Name:||Ftth Fiber Optic Tool Kits||Application:||FTTH Project|
|Tool Set:||VFL,Fiber Cleaver,Stripper,Miller Cutter,Power Meter||Net Weight:||1.15kg|
|Note:||Battery Is Not Included||Package:||Bag|
|Dimension:||215*160*90mm||Shipment:||Shipping Goods Without Any Battery|

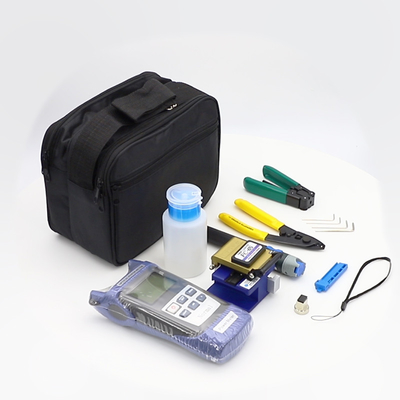

Ftth Fiber Optic Tool Kit 9Pcs,
Ftth Fiber Optic Tool Kit
1 x Fiber Tool Kits Bag

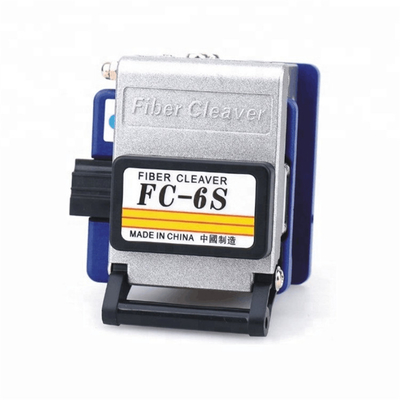

1 x FC-6S Fiber Optical Cleaver
1 x CFS-2 Fiber Optic Stripper
1 x FTTH Drop Cable Stripper
1 x Optical Power Meter
1 x Visual Fault Locator
1 x Fiber Optic Kevlar Cutter
1 x Alcohol Bottle
1 x Screwdriver
1 x Cotton Swab
20pcs x Protection Tube
|2||Optical Power Meter||1|
|5||FTTH Drop Cable Stripper||1|
|7||Alcohol Bump Bottle||1|
|8||Fiber Cutting Marker||1|
|10||FC Adapter for Optical Power Meter||1|
|11||SC Adapter for Optical Power Meter||1|
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Coating Diameter: 250um ~ 900um
Typical Cleave Angle: 0.5 Degrees
Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating)/10 - 16mm (Single Fiber - 0.9mm Coating)
Blade Life Time: 36,000 cleaves (3,000 per blade position)
Cleaver Dimensions: 63 x 65 x 63mm
1.0mm diameter stripping hole at the tip of tool that can be used to strip the fiber jacket
140 µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
Lock to hold tool closed when it is not in use
Will not scratch or nick glass fiber
Pre-set at the factory-no adjustments needed
Comfort grip, ergonomic handles
Description: FTTH Drop Cable Stripper
- Tool for FTTH flat drop optical cable
- Universal Stripper for 3.1x2.0mm FTTH drop cables with steel wire or FRP strength member.
- Simple jacket removing without fiber damaging
- Made of zinc alloy steel with PVC non-slip handle.
- Improve cable splicing, more efficient and easy to use.
- Lightweight and compact.
Description: Fiber Optical Power Meter
|Optical Power Meter|
|Calibration Wavelength (nm)||850,1300,1310,1490,1550,1625|
|Frequency Identification Range||<10K|
|Wavelength (nm)||1310/1550(optional others)/1490|
|Power supply||3 double-A 1.5V dry batteries|
Description: Visual Fault Locator
* Easy to check fiber faults with visual red laser light
* Universally connector for test different ST,SC,FC interfaces
* Test for both single-mode and multi-mode cables with optional 2.5mm fiber optic(Standard) connectors to 1.25mm adapter(Optional)
* High effective power circuits allow for stable laser power
* Operates in both CW(Continuous wave) and pulse mode
* Dust-proof design keep fiber connectors clean
* Providing 15 hours of stable continuous operation
* Output power: 10mW
* Spectral width: 650+/-10nm
* Range: visibility up to 10km
* Operatiing temperature: -10 to +70C
* Store temperature: -40 to +85C
* Length: 6.3in(160mm)
* Weight: 170g(excluding batteries)
* Connector: 2.5mm universal adapter
Description: Fiber Optic Kevlar Cutter
* Telecommunication System
* Testing Equipment
* CATV System
* Long-haul Telecommunication
* LAN System
• Blades made of high carbon alloy steel with vanadium and molybdenum FHRC60-62,cutting adge hardness FHV1200
• Handles made of thermo plastic elastomer
• Exteded tang for durability
• Serrated blade for gripping materials
• Specially designed for cutting kevlar materials
