Product Details:
Place of Origin: Qingdao,China
Brand Name: SUNET/OEM
Certification: ISO9001, ISO14001
Model Number: SNT-FOFC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD0.1-0.5 per piece
Packaging Details: 10 pieces in one box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000000 pcs per week

1000times Different Fiber Optic Connectors

Connector Type: SC/APC Insertion Loss: ≤ 0.3dB
Fiber Type: SM/MM Fiber Cable Type: 3x2mm Flat Cable,3.1*2.0mm Butterfly Optical Cable
Application: FTTH FTTB FTTX Network Color: Green
Durability: ≥ 1000 Times Operating Temperature: -40°C ~ +80°C
High Light:

1000times Different Fiber Optic Connectors


0.3dB Different Fiber Optic Connectors


MM fast connector sc

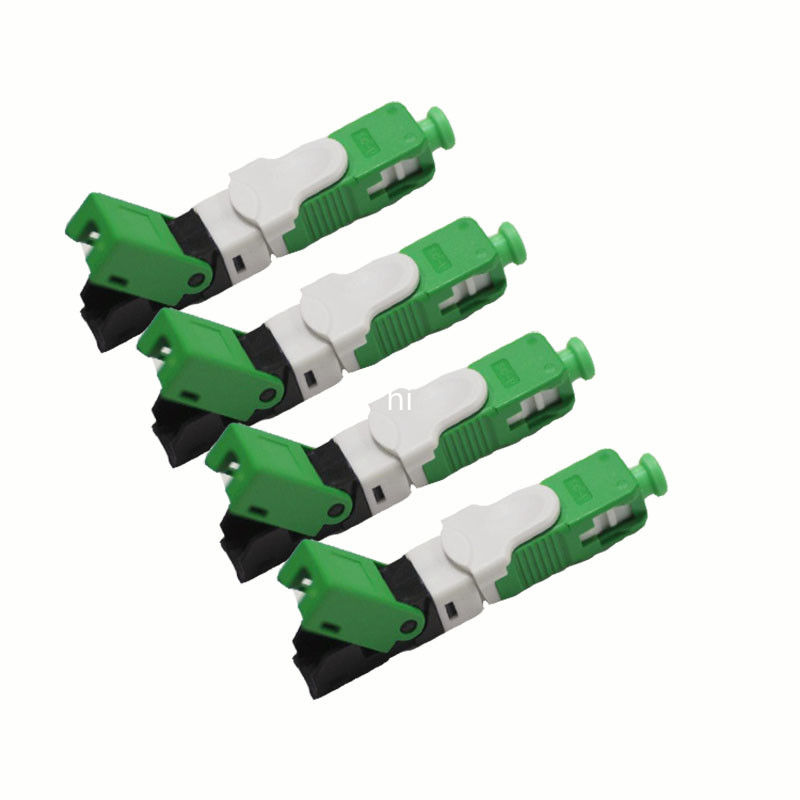

ESC250D Field Assembly Sc Apc FTTH Fiber Optic Quick Connector


SC fast connector allow you to terminate a fiber in short time. The fast connect is a pre-polished connector which uses mechanical clamping and aligning of a cleaved fiber end which is inserted into the connector body. The fast connect is available in both singlemode andmultimode (OM1 and OM3 10Gig)and a variety of connector types and can be terminated onto 250um and 900um coated fibre as well as 2x3 mm and 2x1.6 mm jacketed cord.


Fast Connector Features


1.  Field-installable

2.  Fast and easy to terminate

3.  Excellent insertion and RL performance

4.  Reusable

5.  No termination enclosure required.

6.  Handles and performs like a factory terminated connector

7.  Twin end-face of pre embedded fiber is polished in the factory

8.  Fiber optics is aligned in V-groove through the ceramic frrule




1. Direct termination of fibre

2. FTTx networks(FTTH. FTTD)

3. Enterprise/Access networks


5. Permanent/Temporary replacement/repairs

6. Pre-installation cable drum testing


Fast Connector Parameters





Cable Scope

2x3mm ,0.9mm

Fiber Diameter

125μm (G652D, G657A1, G657A2)

Coating Diameter




Operation Time

about 15s(exclude fiber presetting)

Insertion Loss

≤ 0.3dB(UPC) ; ≤ 0.3dB(APC)

Return Loss

≥50dB for UPC, ≥55dB for APC

Success Rate


Reusable Times

>10 times

Tighten Strength of Coating

>10 N

Tensile Strength

>5 N


-40 ~ +85 C

On-line Tensile Strength Test (20 N)

IL ≤ 0.5dB

Mechanical Durability(500 times)

IL ≤ 0.5dB

Drop Test (4m concrete floor, once each direction, three times total)

IL ≤ 0.5dB
