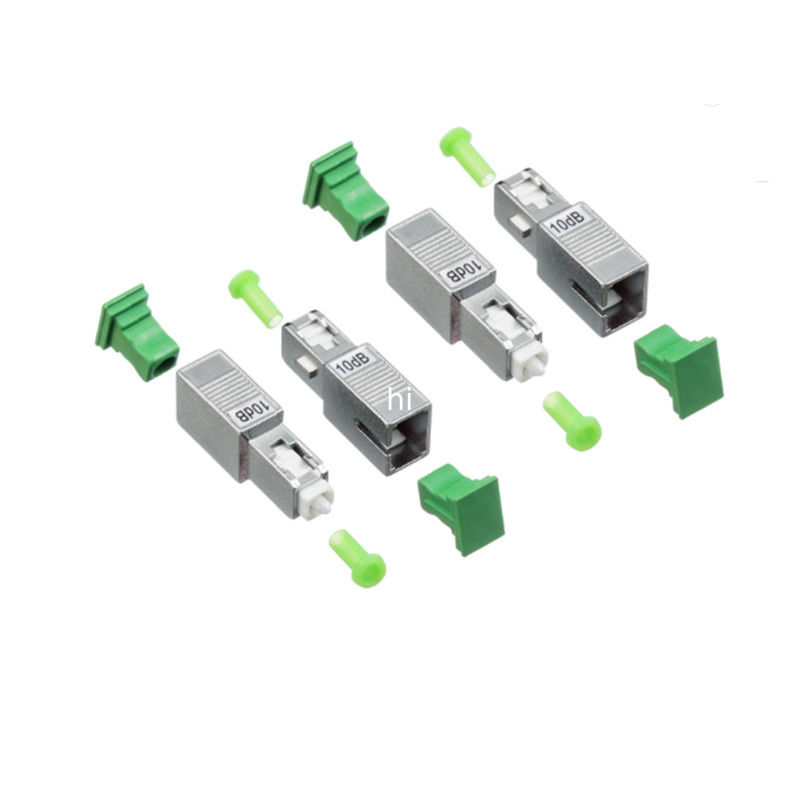

10dB Fixed Optical Attenuator

10dB Fixed Optical Attenuator
10dB Fixed Optical Attenuator 10dB Fixed Optical Attenuator

Large Image :  10dB Fixed Optical Attenuator

Product Details:
Place of Origin: China
Brand Name: SUNET/OEM
Certification: ISO9001/ISO14001
Model Number: Sc
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: usd 0.6-1.5 per piece
Packaging Details: 1 pieces in 1 bag package
Delivery Time: 3-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pieces per week

10dB Fixed Optical Attenuator

Description
Product Name: Fiber Attenuator Type: Male- Female
Connector Type: SC/FC/LC/ST Attenuation Range: 1~30dB/ Customized
Application: CATV Polarization Dep Loss: ≤0.2dB
Material: Metal Durability: >1000 Times
Highlight:

10dB Fixed Optical Attenuator

,

5dB Fixed Optical Attenuator

,

CATV 5db attenuator optical fiber

Sc/Apc Male to Female 5dB 10dB Fixed Fiber Optic Attenuator

Attenuator Description

Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. We supply various kinds of fiber attenuators, including LC, SC, and ST, FC, and Variable fiber optic attenuators.

Attenuator Feature

1.Plug-in type package
2.Accurate attenuation
3.Ultra low back reflection
4.Broad wavelength band
5.Flat response over a wavelength range
6.Environmentally stable
7.Optional adapter: SM/MM, Simplex/Duplex

Attenuator Application

1. Access Network

2. Telecom/CATV

3. Systems FTTX

Attenuator Specification

Connector Type FC,SC,ST,LC,MU
Attenuation Value 1dB ~ 30dB
Model Fixed, In-line, Variable,Adapter (Female to Female), Connector (Male to Female)
Operating Wavelength SM:1240 ~ 1620nm (Dual 1310/1550nm) MM:850/1300nm
Return Loss UPC >55dB,APC >60dB
Attenuation
Tolerance
1 ~ 7 dB ±0.5dB
8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power: 1000mW(SM);200mW(MM)
Polarization Dependent Loss: ≤0.2dB
Operating Temperature Range: -40 ºCto 75ºC
Storage Temperature Range: -40ºC to 85ºC
Humidity: 95%RH
