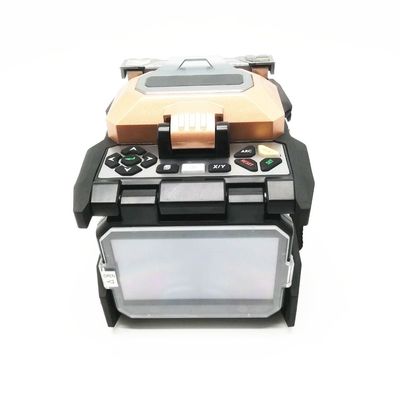

Large Image :  Single Fiber Splicing Machine Fiber Optic Fusion Splicer Av6481

Product Details:
Place of Origin: China
Brand Name: SUNET
Certification: ISO14001/ISO900
Model Number: SUNET-14
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 1190-1200 per piece
Packaging Details: box+ carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 per month

Single Fiber Splicing Machine Fiber Optic Fusion Splicer Av6481

Description
Place Of Origin: Shandong, China Certification: RoHS, RoHS
Product Name: Fiber Bare Mechanical Splicer Color: Orange&green&blue
Application: Single Fiber Single Mode Return Loss: >60dB
Weight: 8kg Splicing Time: 6-7 Seconds
Type: Fusion Splicer Focus Mode: Six Motors Auto Focus
High Light:

Fiber Optic Fusion Splicer Av6481

,

RoHS Fiber Optic Fusion Splicer

,

Single Fiber Splicing Machine 60dB

Single Fiber Splicing Machine Fiber Optic Fusion Splicer Av6481



Describtion



Obtaining 16 patens of invention and 58 technical innovations, a brand-new product—AV6481 Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers. AV6481 implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with AV6471, our star product, AV6481 lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.





Feature

1.Precise fiber core alignment, ultra-low fiber fusion splicing consumption
2. 7s fast fusion splicing, 18s highly efficient heating.
3. 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
4. 300 groups of fusion splicing modes, 100 groups of heating modes
5. 10000 groups of fusion records, 64 images storage
6. Ceramic presser foot, ceramic V-block, all-in-one fixture
7. Dual-direction splicing, automatic splicing, intelligent pyrocondensation
8. USB and SD card interfaces, U-disk automatic software upgrade
9. Built-in modular lithium battery, supports 220 times of splicing and heating cycles



Application

1.FTTH FTTB FTTX Network

Specification





Model
AV6481
Alignment method
Precise core alignment and cladding alignment

Applicable fibers
Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and
ITU-TG.657.
Optical fiber diameter
Cladding:80~150μm, coating layer: 0.1~3mm

Cutting length
5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical
fiber diameter:0.25~3mm)
Fusion splicing consum ption(typical value)

0.02dB(SMF);0.01dB(MMF);0.04dB(DSF);0.04dB(NZDSF)
Return loss
Better than 60dB
Fusion splicing time
(typical value)

7s
Heating time (typical
value)
18s
Pulling force test
1.96~2.25N
Thermal shrinkage tube
60mm, 40mm and a series of thermal shrinkage tubes
Graphical display
High-performance 4.3 inch LCD
Magnification time
320 times/88 times
Fusion splicing record
10000 groups

Battery capacity
11.1V,6400mAh,typical value of fusion splicing and thermal cycle is 220 times
Battery service life
Cycle charging times reach 300~500, can be replaced by customers
Electrode service life
Typical value is 4000 times, can be replaced by customers
Construction lighting
Built-in lights with high-brightness and wide lighting area
Working environment
Temp:-10~50ºC;hum: 0~95%RH,height above sea level:0~6000m
Operation interfaces
GUI graphical operation interfaces
External power
AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V
External port
USB / SD
Dimensions
120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad)
Weight
1.59kg(host engine),0.37kg(battery)

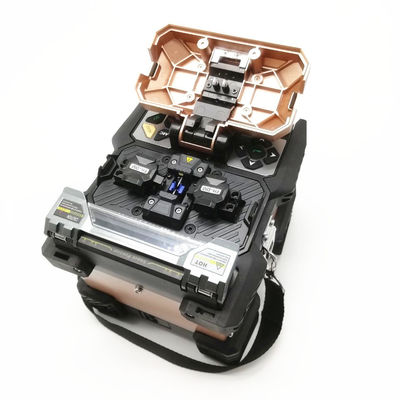

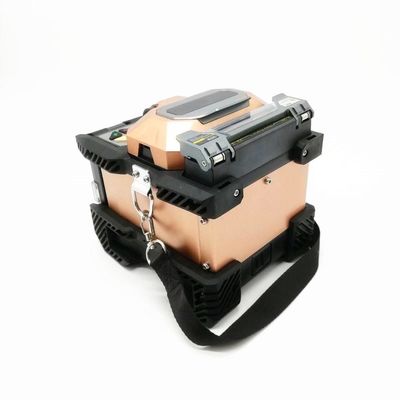

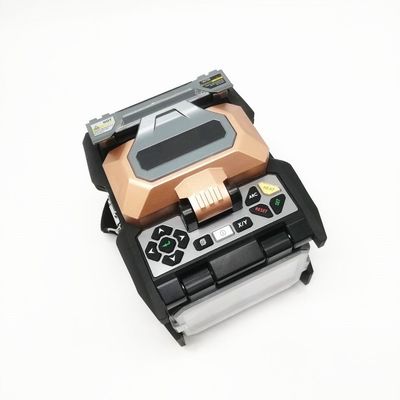

Single Fiber Splicing Machine Fiber Optic Fusion Splicer Av6481 0Single Fiber Splicing Machine Fiber Optic Fusion Splicer Av6481 1Single Fiber Splicing Machine Fiber Optic Fusion Splicer Av6481 2

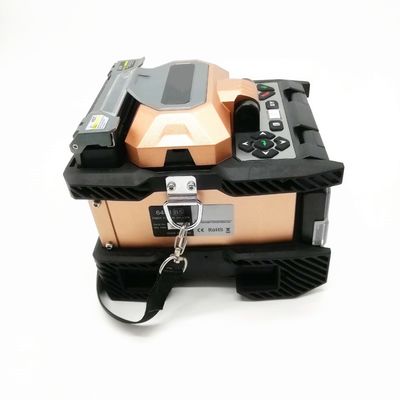

Single Fiber Splicing Machine Fiber Optic Fusion Splicer Av6481 3
