Product Details:
|
| Type: | SC | Product Name: | FTTH SC Fast Quick Connector |
|---|---|---|---|
| Fiber Type: | SM | Operating Temperature: | -40~75 |
| Certification: | ISO9001,RoHS | Name: | Fast Connector |
| Connector: | SC Fiber Optic Connector | Lead Time: | 3-7working Days |
| Insertion Loss: | <0.3dB | Application: | FTTH FTTB FTTX Network |
| High Light: | Upc Flat Cable Fast Connector,Indoor Duplex Flat Cable Fast Connector |
||
Describtion

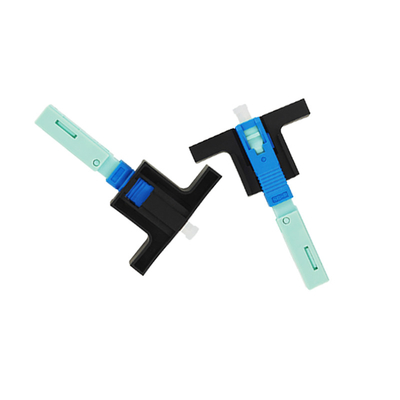

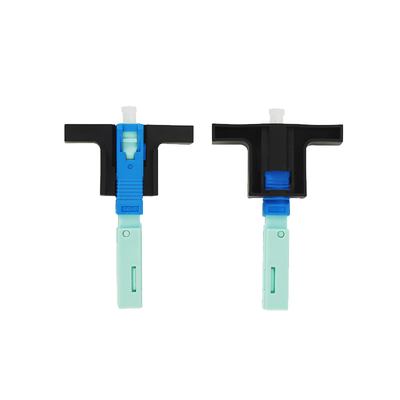

Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
Feature
1. Linkage structure design, when docking with equipment and joints, the reserved
2. microbend remains unchanged;
3. Double V-slot structure design, fiber optic docking is stable and reliable;
4. The core structure: the use of normally closed elastic fastening method,
5. excellent technical indicators;
6. Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
7. Easy to operate, fast construction, high installation success rate,
8. long life cycle, easy maintenance in the later period.
Application
1. Applied to open FTTH fiber terminal
2. Used in closure boxes, cabinets, teminal boxes, etc.
3. Recovery and maintenance in fiber breakage and other accidents
4. LAN, WAN, data and video transmission
5. Construction and maintenance of fiber access for end users
6. Fiber entry for mobile base stations
Specification
| Characteristic | SM , MM | |||
| Connector type | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
| Diameter(mm) | 0.9,2.0,3.0 | |||
| Polishing grade | SM PC | MM PC | UPC | APC |
| Insertion loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return loss | ≥40dB | ≥50dB | ≥65dB | |
| Interchangeability | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Operation temperature | -40~+80 | |||
 |
|||||||||
