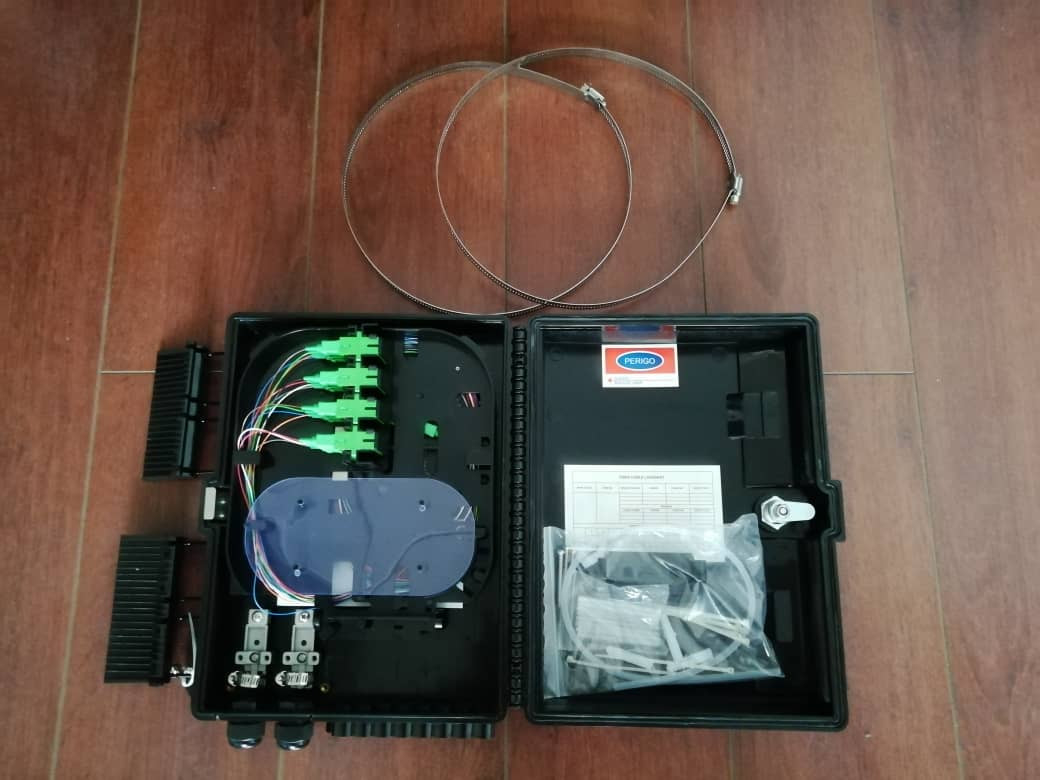

Indoor Outdoor Fiber Optic FDB FTTH Termination Box 16 Ports

Indoor Outdoor Fiber Optic FDB FTTH Termination Box 16 Ports
Indoor Outdoor Fiber Optic FDB FTTH Termination Box 16 Ports
Indoor Outdoor Fiber Optic FDB FTTH Termination Box 16 Ports Indoor Outdoor Fiber Optic FDB FTTH Termination Box 16 Ports

Large Image :  Indoor Outdoor Fiber Optic FDB FTTH Termination Box 16 Ports

Product Details:
Place of Origin: Qingdao , China
Brand Name: SUNET / OEM
Certification: ISO9001 / ISO14001
Model Number: 16 Core
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 7.15-7.30 per piece
Packaging Details: Carton Package
Delivery Time: 5 - 8 Workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 PCS / Month

Indoor Outdoor Fiber Optic FDB FTTH Termination Box 16 Ports

Description
Material: PC+ABS Splitter Type: Mini Or Lgx Type
Waterproof Level: IP66 Accommodate Splitter: 1*8/16 PLC Splitter
Adaptor Type: Sc,LC Warranty: 2 Years
Specification: 16 Ports Installation: Wall Mount And Pole Mount
High Light:

Fiber Optic FDB FTTH Termination Box

,

FTTH Termination Box 16 Ports

,

Sc LC FTTH Terminal Box

Indoor 16 Core Mini ABS Material Fiber Optic FTTH Termination Box





Description



FAT-16A fiber access termination box is able to hold up to 16 subscribers.It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.It integrates fiber splicing,splitting,distribution,storage and cable connection in one solid protection box.



ABS material used ensures the body strong and light.

Water-proof design for outdoor uses.

Easy installations: Ready for wall mount - installation kits provided.

Adapter slots used - No screws and tools needed for installing adapters.

Ready for splitters: designed space for adding splitters.

Space saving! Double-layer design for easier installation and maintenances:

Lower layer for splitters and over length fiber storage.

Upper layer for splicing, cross-connecting and fiber distribution.

Cable fixing units provided for fixing the outdoor optical cable.

Protection Level: IP66.

Accommodates both cable glands as well as tie-wraps

Lock provided for extra security



Feature



1. Water-proof design with IP-66 Protection level.

2. Integrated with splice cassette and cable management rods.

3. Manage fibers in a reasonable fiber radius condition.

4. Easy to maintain and extend the capacity.

5. Fiber bend radius control more than 40mm.

6. Suitable for the fusion splice or mechanical splice.

7. 2 pcs of 1*8 Splitter can be installed as an option.

8. Efficient cable management.16 ports cable entrance for drop cable



Application



1. Optical LAN & WAN & CATV

2. FTTH project & FTTX Deployments

3. Broadband High-bit rate data transmission

4. Active device terminations

5. Testing instruments

6. Optical fiber communication networks

7. PON Networks

8. Optical Signal Distribution



Specification



Product Name

FTTH Access Terminal Junction Box,8 Core

Material

PC+ABS

Dimension

295*220*85mm

Color

Black or white

Work Temperature

-40 ~+85 ºC

Relative Humidity

≤ 85% (+30 C)

Atmospheric Pressure

60Kpa~106Kpa

Weight

1.57KG

Max Capacity

SC  16 Ports



PLC 1x16 (SC)

Packing Quantity

10 pcs in one carton
