Product Details:
|
| Name: | Fiber Optic Attenuator | Type: | SC/APC Male To Female |
|---|---|---|---|
| Color: | Green | Individual Packing: | Poly Bag |
| Operation Temprature: | -40--85 | Warranty: | 3 Years |
| Application: | FTTH FTTB FTTX Network,CATV | Connector Type: | SC FC LC ST MPO MTP MU Or Hybrid |
| Wavelength: | 1310/1550nm | Certification: | ISO9001 |
| Repeatably: | ≤0.2dbm | Durability: | >1000 Times |
| Attenuation Range: | 1~30dB Or Custom | Fiber Type: | Single Mode |
| Attenuation Tolerance: | 5dB ± 0.5dB | Material: | Metal |
| High Light: | 1600nm Fixed Optical Attenuator,200MW Fixed Optical Attenuator,EDFA sc attenuator |
||

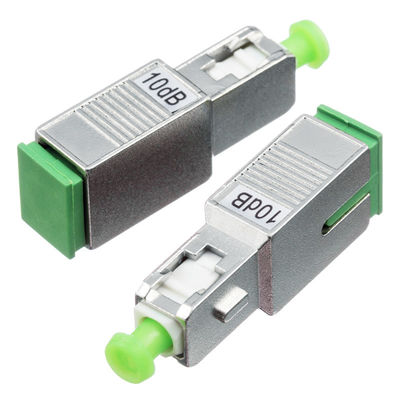

Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the
optical power in the optical communication system,debugging fiber optic instrument calibration correction,
optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion
due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter
and attenuators.
| Product type | Coupler Attenuator Male to Female |
| Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
| MM: 850nm, 1300nm | |
| Return Loss | ≥ 50 db (PC) |
| ≥ 55 db (UPC) | |
| ≥ 65 db (APC) | |
| Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
| +/-10% for 6 to 30db attenuation | |
| Polarization Dependent loss | ≤ 0.2db |
| Mechanical endurance | >1000 |
| Maximum optical Input power | 200MW |
| Operating Temp Range | -40 to + 80degree |
| Standard | YD/T 1272.4-2007 |
Features:
Metal ion doped fiber
High-power light source durability
Wavelength independence
Attenuation levels ranging from 1dB to 25dB
1310nm, 1550nm and 1310/1550nm dual wave lengths
Applications:
Erbium Doped Fiber Amplifiers (EDFA)
Dense Wave Division Multiplexers (DWDM)
Overpowered fiber optic systems
