Product Details:
|
| Type: | Rackmount Type | Application: | FTTH FTTB FTTX PON CATV |
|---|---|---|---|
| Length: | 0.5m/1m | Color: | Grey/Black |
| Connector Type: | LC/APC | Item: | High Quality Plc Splitters Fiber Spliter |
| Warranty: | 3 Years | Return Loss: | ≥50 DB |
| High Light: | 50dB 1x32 Plc Splitter,50dB Lc 1x32 Plc Splitter,50dB Duplex fiber optic splitters |
||

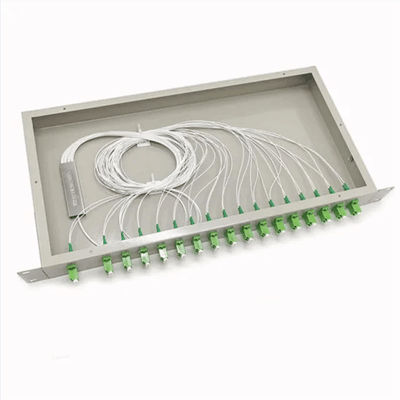

1*32 Lc Apc Duplex Rack Mount Type Fiber Optic Plc Splitter
Plc Splitter Description
PLC Splitter is based on planar Light wave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN .PLC Splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. SUNET's PLC Splitter offers superior optical performance, high stability and high reliability,meet various application requirements in different environments.
Plc Splitter Features
Low Insertion loss, Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃to 85℃
High Reliability and Stability
Plc Splitter Applications
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
Plc Splitter Specifications
| Technical Specification 1×N Series | ||||||
| Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×64 |
|
Operation Wavelength (nm) |
1260 - 1650
|
1310 ± 40 | ||||
| 1490 ± 10 | ||||||
| 1550 ± 40 | ||||||
| Insertion Loss (dB) | ≤ 7.4 | ≤ 10.7 | ≤ 13.9 | ≤ 17.2 | ≤ 21.5 | ≤ 20.1 |
| PDL | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 |
| Uniformity of l.L | ≤0.8 | ≤ 1.0 | ≤ 1.4 | ≤ 1.6 | ≤ 2.0 | ≤ 1.6 |
| Return loss (dB) | ≥ 55 | |||||
| Directivity (dB) |
≥ 55 |
|||||
