Product Details:
|
| Fiber Type: | G652D / G657A1 / G657A2 / Customized | Connector Type: | SC / APC |
|---|---|---|---|
| Insertion Loss: | ≤ 0.3 DB | Jacket Material: | PVC / LSZH |
| Color: | White / Blue / Yellow / Orange /Aqua / Customized | Fiber Count: | Simplex |
| Application: | FTTH FTTB FTTX Network | Length: | 1m 2m 3m |
| Highlight: | G657A1 Pigtail Single Mode Sc,0.25dB 12 strand single mode fiber optic cable,OFNR 12 strand single mode fiber optic cable |
||

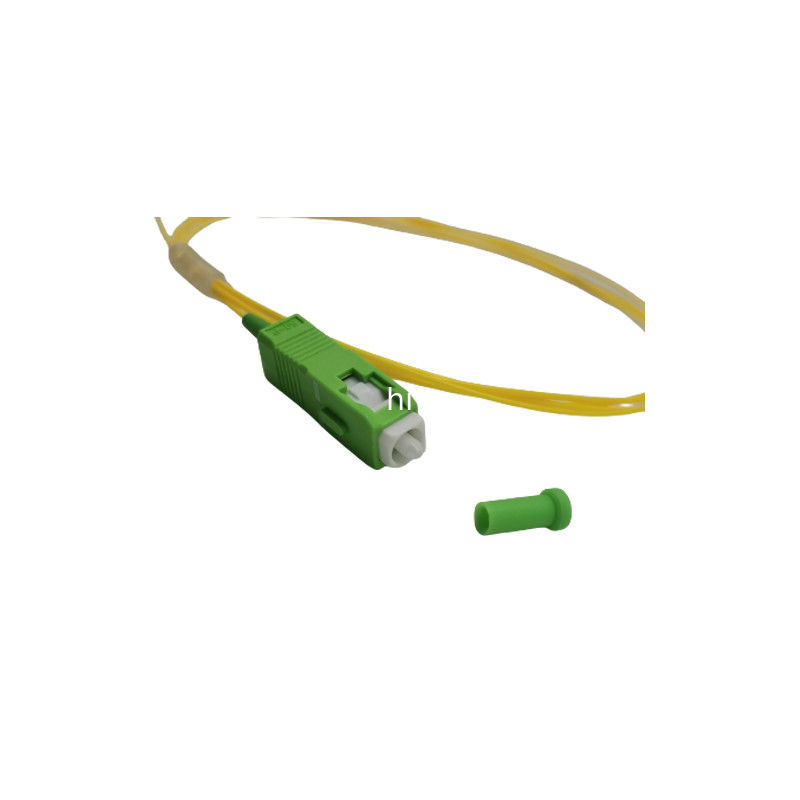

SC APC Single Mode 0.9mm G657A1 Yellow Color Fiber Optic Pigtail
Pigtail Description
Fiber optic pigtails are typically used to link the fiber optic cable with fiber optic equipment. The connector side of the pigtail is used to link the equipment, while the other side is fusion spliced together with the fiber cable. By splicing together, the fiber glasses, it can reach a minimum insertion loss.
Single-mode fiber uses to transmit over longer distances. It is a single glass fiber strand used to transmit a single ray of light. Single-mode fiber features only one transmission mode. Compared with multi-mode fiber, it can carry higher bandwidths; however, it needs to have a light source having a narrow spectral width
Pigtail Feature:
Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber
Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
Polishing Options:PC/UPC/APC
Feature Connector with Ceramic Ferrules
Pigtail Applications
1. Access Network
2. Telecom/CATV Systems
3. FTTx
Pigtail Specifications
|
Parameters |
Standard Fiber Cable Assemblies |
|
|
Fiber Type |
SM(G.652/G.657) |
MM(OM1/OM2/OM3/OM4/OM5) |
|
Jacket Materials |
LSZH/OFNR/PVC |
|
|
Connector Type |
FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP |
|
|
Ferrule Materials |
Ceramic |
|
|
Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
|
Insertion Loss (dB) |
≤0.25dB |
≤0.3dB |
|
TIA/EIA-455-107 |
(PC/UPC/APC) |
(PC/UPC) |
|
Return Loss (dB) |
≥50dB(PC/UPC) |
≥40dB(PC/UPC) |
|
TIA/EIA-455-107 |
≥60dB(APC) |
|
|
Exchange-ability |
≤0.2dB |
|
|
Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patch cord |
|
|
Operating Temperature (ºC) |
-10 ~ +70 |
|
|
Storage Temperature (ºC) |
-40 ~ +85 |
|
|
Package |
1 pieces/bag |
|
|
All values specified are with connectors |
||
