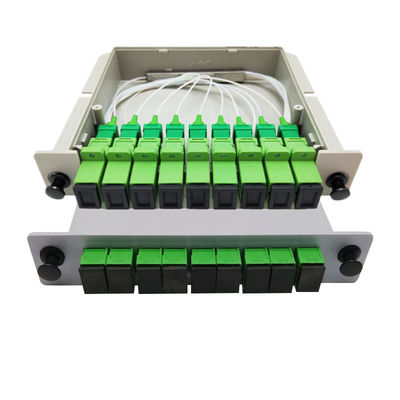

Large Image :  Insertion Card Type Fiber Optic PLC Splitter 1x8 SC / APC SC/UPC Connector

Product Details:
Place of Origin: China
Brand Name: SUNET
Certification: ISO14001/ISO900
Model Number: SUNET-03
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 1-2 per piece
Packaging Details: box+ carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 per month

Insertion Card Type Fiber Optic PLC Splitter 1x8 SC / APC SC/UPC Connector

Description
Type: Single Mode Connector: SC/APC
Length: 0.35/0.35 Making Rings: NO
Package: 1 Piece 1 Box Application: FTTH
Material: PVC Insertion Loss: 7.0dB
High Light:

Fiber Optic PLC Splitter 1x8

,

SC / APC Fiber Optic PLC Splitter

,

Insertion Card Splitter Plc 1x8

Insertion Card Type Fiber Optic PLC Splitter 1*8 SC / APC SC/UPC Connector

Describtion



PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.



Feature

·High Stability and Reliability

· YD/T 2000.1-2009 Compliance (TLC product Certificate Compliance)

· Local Area Networks (LAN)

· Cable Television (CATV)







Application

♦ Active dvice termination
Telecommunication networks

FTTH networks

Data Processing networks

Test Equipment

Wide Area Networks(WANs)

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x4 1x8 1x16 2x4 2x8 2x16 1x32 2x32 1x64
Insertion Loss (dB) Max <7.3 <10.4 <13.5 <7.6 <11.2 <14.5 <16.2 <18.2 <20.5
Uniformity (dB) Max <0.8 <1.0 <1.5 <1.0 <1.5 <2.0 <2.0 <2.5 <2.5
PDL(dB)Max <0.2 <0.2 <0.3 <0.3 <0.3 <0.4 <0.3 <0.4 <0.4
Directivity (dB) Min 55
Return Loss (dB) Min 55(50)
Operating Temperature (°C) -5~ +75
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or custom length
Fiber Type Corning SMF-28e fiber
Connector Type Custom specified
Power Handling (mW) 300

Insertion Card Type Fiber Optic PLC Splitter 1x8 SC / APC SC/UPC Connector 0Insertion Card Type Fiber Optic PLC Splitter 1x8 SC / APC SC/UPC Connector 1Insertion Card Type Fiber Optic PLC Splitter 1x8 SC / APC SC/UPC Connector 2
