Product Details:
|
| Product Name: | Fiber Optic PLC Splitter | Type: | 1*2/1*4/1*8/1*16/1*32/1*64 |
|---|---|---|---|
| Application: | FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution | Material: | PVC;ABS |
| Connector: | No Connector | Warranty: | 3 Years |
| High Light: | 1650nm Wavelength Fiber Optic PLC Splitter,PVC Fiber Optic PLC Splitter,1 To 4 Plc Optical Splitter |
||

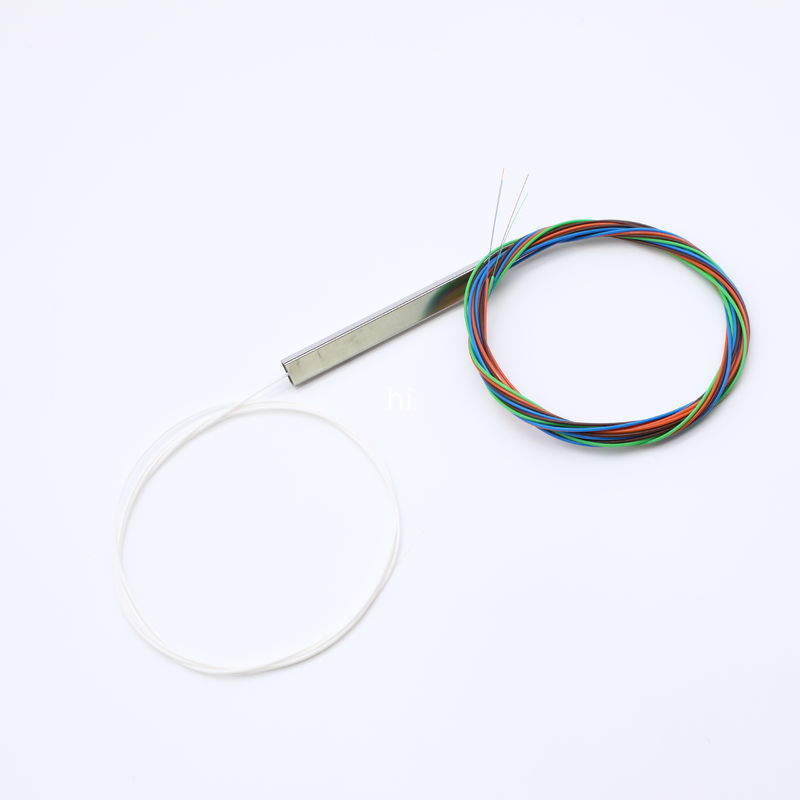

Best Quality 1 to 4 Fibber Optic PLC Splitter
Features
Low Insertion loss and PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliability and Stability
Specification
| Category | Specification | Remarks | |||
| Test Wavelength | nm | 1310&1490&1550 | |||
|
( exclude connector loss) |
U Grade | MAX | dB | 7.1 | |
| P Grade | 7.2 | ||||
| S Grade | 7.4 | ||||
|
Insertion Loss (With connector loss) |
U Grade | MAX | dB | 7.4 | |
| P Grade | 7.5 | ||||
| S Grade | 7.7 | ||||
| Channel Uniformity | MAX | dB | 0.6 | ||
| Polarization Dependent Loss-PDL | MAX | dB | 0.2 | ||
| Directivity | MIN | dB | 55 | ||
| Return Loss | MIN | dB | 55 | ||
| Adapter Insertion Loss | MAX | dB | N/A | ||
| Working Wavelength | NM | 1260~1650 | |||
| Storage Temperature | ℃ | -40~+85 | |||
| Operating Temperature | ℃ | -40~+85 | |||
