Product Details:
|
| Insertion Loss: | <0.3dB | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | SC | Return Loss: | > 55db |
| Color: | Green | Type: | SC |

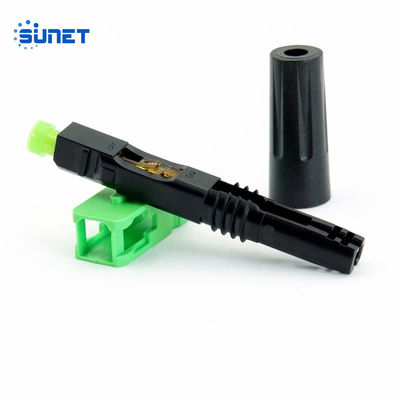

| Product Name: | FTTH SC Fast Quick Connector | Fiber Type: | SM |
| Operating Temperature: | -40~75 | Certification: | ISO9001,RoHS |
| Name: | Fast Connector | Connector: | SC Fiber Optic Connector |
| Lead Time: | 3-7working Days | ||
| High Light: | Sc APC UPC Connector,Fiber Optic APC UPC Connector,55db Ftth Fast Connector |
||
Describtion
Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
Feature
1.Quickly assembly connetor
2.High return loss,low insert
3.Cost effective portable
4.Install quickly
5.Reliable and superior optical performance
Application
1.Patch panels
2.Distribution frames
3.Maintenance or emergency restoration of fiber networks
4.FTTH Outlets
5.Connection at the desk for LAN environments
Specification
| Product name | Fiber Optic Field Assembly Fast Connector |
| Type | Pre-Embedded |
| Suitable optical fiber | 2.0*3.0 cable |
| Fiber mode | Single & Multi mode |
| Installation time | Within 60s ( No fiber cut ) |
| Insertion loss | ≤ 0.3dB (Max 0.5) |
| Return loss | ≥ 50dB |
| Tensile strength | > 50N |
| Working Temperature | -40~+75ºC |
| Storage Temperature | -40~+85ºC |
