Product Details:
|
| Name: | Ftth Termination Box | Type: | 16ports |
|---|---|---|---|
| Color: | Grey Or Black | Application: | FTTH FTTB FTTX Network,CATV |
| Material: | PC+ABS | Weight: | 1.5kg |
| Ip Grade: | Outdoor IP65 | Max Capacity: | SC 16 Port/Modular PLC 1X8(SC) |
| High Light: | Abs Material Ftth Termination Box,16 Ports Ftth Termination Box,IP65 Fiber Optic Termination Box |
||

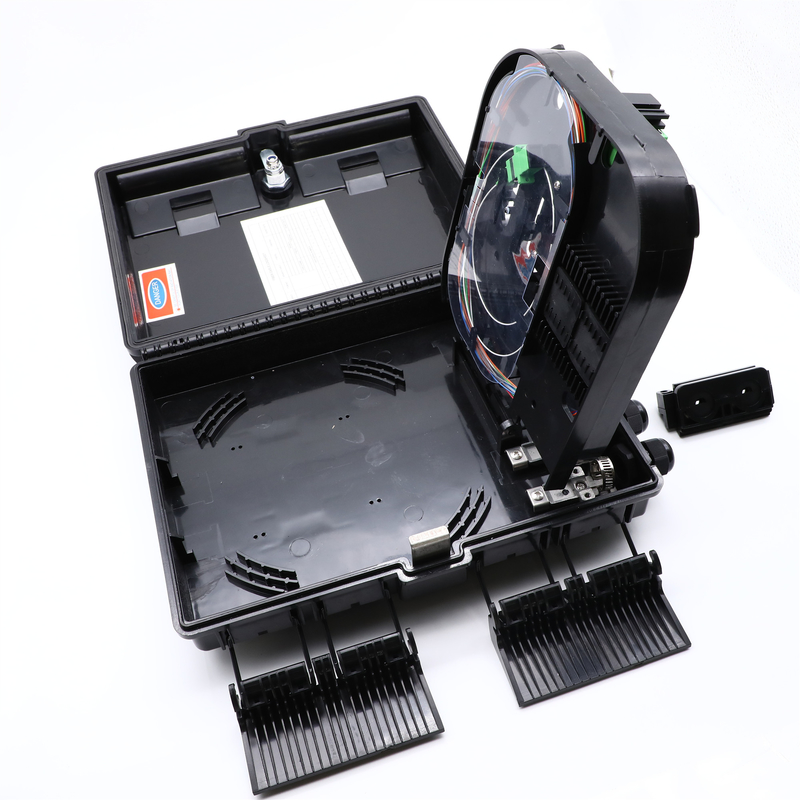

Abs Material 16 ports Fiber Optic Ftth Termination Box Ftb Caja
OTB Description
FAT-16F fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
OTB Features
1. ABS material used ensures the body strong and light.
2. Water-proof design for outdoor uses.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Ready for splitters: designed space for adding splitters.
6. Space saving! Double-layer design for easier installation and maintenances:
7. Lower layer for splitters and over length fiber storage.
8. Upper layer for splicing, cross-connecting and fiber distribution.
9. Cable fixing units provided for fixing the outdoor optical cable.
10. Protection Level: IP65.
11. Accommodates both cable glands as well as tie-wraps
12. Lock provided for extra security
OTB Specifications
| Dimensions and Capability | |
| dimensions(W*H*D) | 270mm*220mm*100mm |
| Adapter Capacity | 16xSC;16xLCDX;1x8 PLC Splitter |
| Number of Cable Entrance/Exit | 2/16 |
| Optional Accessories | Adapters, pigtails |
| Insert Loss | ≤0.2dB |
| UPC Return Loss | ≥50dB |
| APC Return Loss | ≥60dB |
| Weight | 1.5KG |
| Shipping Information | |
| Pakage Contens | Distribution box, 1 unit; Keys for lock, 2keys |
| Wall mount installation accessories,1 set | |
| Package dimensions(W*H*D) | 270mm*200mm*100mm |
| Weight | 1.5KG |
