Product Details:
|
| Fiber Type: | G657A1/G657A2 | Strength Member: | Steel Wire |
|---|---|---|---|
| Fiber Count: | 1/2/4/6/8/12 Core | Jacket: | LSZH |
| Product Name: | Ftth Drop Cable | Color: | Black |
| Length: | 0.5m/1m/2m/5m/customized | Oem: | Available |
| Highlight: | 1.2mm Optical Fiber Drop Cable For Internet,SNT FDC Optical Fiber Drop Cable For Internet,2m fiber single mode Drop cable |
||

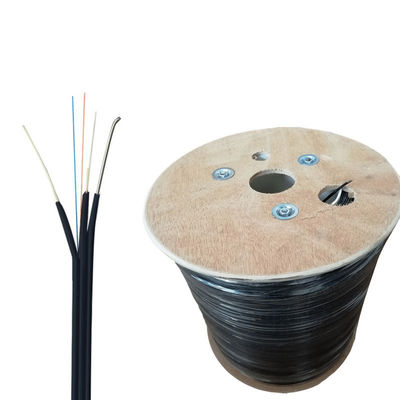

FTTH Drop Cable SM FRP/KFRP/Metal Strength Member Fiber Optic Cable
Description:
FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP/steel wire . Then it is self-supported by diameter 1.2mm steel wire. Last this cable is completed with black or white LSZH sheath.
Features:
Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.
Meet the requirement of thunder-proof, anti-rodent or waterproof.
Good to use for fiber to the home last mile solution.
Application:
Outdoor aerial application.
Used in the FTTH projects.
High speed optical routes in building.
Parameters:
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
| Fiber Count | Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength (N/100mm) |
Crush Resistance (N/100mm) |
|||
| Short Term | Long Term | Short Term | Long Term | ||||
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 | |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 | |
