Product Details:
|
| Product Name: | Ftth Drop Cable | Fiber Type: | G657A1/G657A2 |
|---|---|---|---|
| Jacket: | LSZH | Strength Member: | FRP/KFRP/Steel Wire |
| Fiber Count: | 1/2/4/6/8/12 Core | Color: | White/Black |
| Length: | 1km/2km/customized | Installation: | Outdoor |
| High Light: | G657A1 Singlemode Fiber Optic Drop Cable,LSZH Singlemode Fiber Optic Drop Cable,FRP Singlemode Fiber Optic Drop Cable |
||

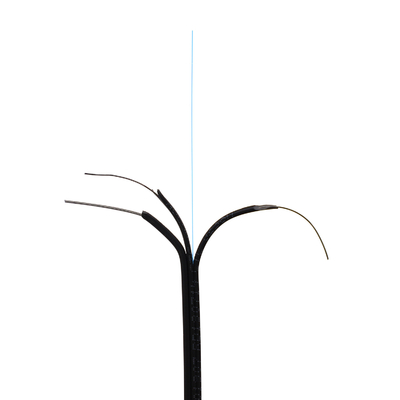

Ftth Drop Cable Description
Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ).The cable is protected by a dielectric strength member, suitable for direct aerial installationinto the houses in FTTH projects.
Features:
Ftth Drop Cable Application
1. Outdoor aerial application.
2. Used in the FTTH projects.
3. High speed optical routes in building.
Ftth Drop Cable Features
1. Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.
2. Meet the requirement of thunder-proof, anti-rodent or waterproof.
3. Good to use for fiber to the home last mile solution.
Ftth Outdoor Drop Cable Parameters
|
Cable type |
OD(mm) |
Nominal Weight (kg/km) |
Tensile Strength (N) |
Crush Resistance (N/100MM) |
Bending Radius (mm) |
|||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJYXFH-1Xn | (2.0±0.1)*(6.2±0.3) | 23. 6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFH-2Xn | (2.0±0.1)*(6.2±0.3) | 23. 6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFH-3Xn | (2.0±0.1)*(6.2±0.3) | 23. 6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFH-4Xn | (2.0±0.1)*(6.2±0.3) | 23. 6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| Storage/Working temperature (°C) | -20~ + 60 | |||||||
