Product Details:
|
| Fiber Type: | G652D / G657A1 / G657A2 / Customized | Connector Type: | SC / UPC |
|---|---|---|---|
| Insertion Loss: | ≤ 0.3 DB | Jacket Material: | PVC / LSZH |
| Color: | White / Blue / Yellow / Orange /Aqua / Customized | Fiber Count: | Simplex |
| Application: | FTTH FTTB FTTX Network | Length: | 1m 2m 3m |
| High Light: | G657A1 Pigtail For Fiber Optic Cable,Low PDL Pigtail For Fiber Optic Cable,3m om4 pigtails |
||

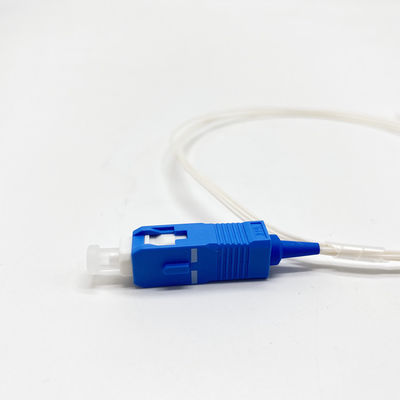

SC UPC Single Mode 0.9mm G657A1 White Color Fiber Optic Pigtail
Description
1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length
2.The patch cord are factory terminated, assembled, tested and inspected prior to shipment.
3.All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.
Feature:
Price-CompetitiveLow Insertion Loss & PDLFactory-terminated and TestedFiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda FiberConnector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTPPolishing Options: PC/UPC/APCFeature Connector with Ceramic Ferrules
Applications
1. Access Network
2. Telecom/CATV Systems
3. FTTx
Specifications
|
Parameters |
Standard Fiber Cable Assemblies |
|
|
Fiber Type |
SM(G.652/G.657A) |
MM(OM1/OM2/OM3) |
|
Jacket Materials |
LSZH/OFNR/PVC |
|
|
Connector Type |
SC/LC/ST/LC/MU/MTRJ/MPO/E2000 |
|
|
Ferrule Materials |
Ceramic |
|
|
Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
|
Insertion Losss(dB) |
≤ 0.2dB |
≤ 0.3dB |
|
Return Loss(dB) |
≥45dB(PC/UPC) |
≥35dB(PC/UPC) |
|
Exchangeability |
≤ 0.2dB |
|
|
Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patchcord |
|
|
Operating Temperature (° C) |
-10~ + 70 |
|
|
Storage Temperature (° C) |
-40 ~ +85 |
|
|
Package |
1unit/bag |
|
|
*All values specified are with connectors. |
||
Ordering options:
|
Boot (cable size) |
Boot Color |
Fiber Type |
Cable number |
Ferrule |
Length |
|
0.9mm |
Black |
9/125um SM |
Simplex |
PC |
Customized |
